5.93 cu ft , 11.94 cu ft , 14.41 cu ft , 20.77 cu ft , 25.71 cu ft , 29.59 cu ft
Request Your Custom Quote Today
Tell us your required quantity and application needs to receive a tailored quotation for this product.
Sku: 86V338

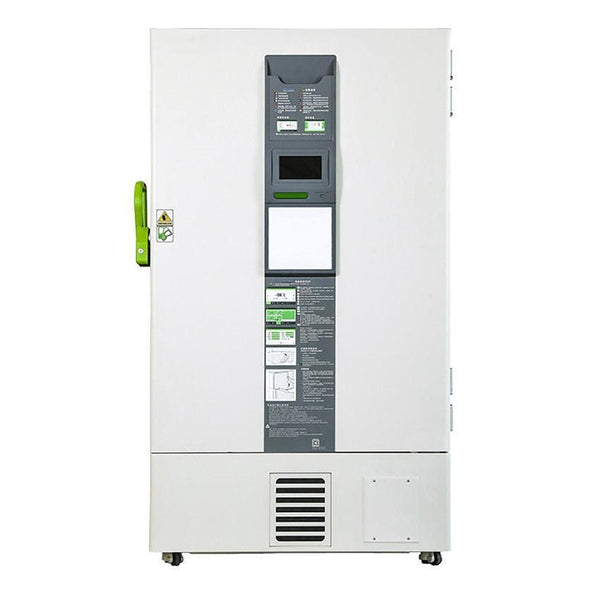

-86°C Ultra-Low Temp Upright Medical Freezer
Overview
-86°C Ultra-Low Temp Upright Freezer has the most proven cascade system technology which has the characteristics of stable performance, easy maintenance and long term storage of various biological products.
Specification
| Model | MDF-86V338 | MDF-86V408 | MDF-86V588 | MDF-86V728 | MDF-86V838 | |
|---|---|---|---|---|---|---|
| Specifications | Shelf/drawer QTY | Stainless Steel Shelf/3 | Stainless Steel Shelf/3 | Stainless Steel Shelf/3 | Stainless Steel Shelf/3 | Stainless Steel Shelf/3 |
| Cooling | Direct Cooling | Direct Cooling | Direct Cooling | Direct Cooling | Direct Cooling | |
| Defrost | Manual | Manual | Manual | Manual | Manual | |
| Refrigerant | HC (R290&R170) | HC (R290&R170) | HC (R290&R170) | HC (R290&R170) | HC (R290&R170) | |
| Noise(db) | 50 | 50 | 53 | 53 | 53 | |
| Ambient temperature range | 10~32℃ | 10~32℃ | 10~32℃ | 10~32℃ | 10~32℃ | |
| Temperature range | -40~86℃ | -40~86℃ | -40~86℃ | -40~86℃ | -40~86℃ | |
|
Cooling System |
Compressor Brand/QTY | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 |
| Cooling System | Cascade | Cascade | Cascade | Cascade | Cascade | |
| Sensor | PT 100 | PT 100 | PT 100 | PT 100 | PT 100 | |
| Temperature Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
| Display | 7” LCD Touch Screen | 7” LCD Touch Screen | 7” LCD Touch Screen | 7” LCD Touch Screen | 7” LCD Touch Screen | |
| Pull Down Time | 276 min | 314 min | 340 min | 360 min | 365 min | |
| Warm up time | 205 min | 234 min | 273 min | 292 min | 304 min | |
| Power | Voltage/Frequency | 220V/50 Hz | 220V/50 Hz | 220V/50 Hz | 220V/50 Hz | 220V/50 Hz |
| Power | 620W | 650W | 690W | 710W | 710W | |
| Power Consumption | 11.17 kWh/24h | 12.43 kWh/24h | 14.85 kWh/24h | 14.98 kWh/24h | 16.47 kWh/24h | |
|
Material |
Inside Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Outside Material | Color sprayed steel | Color sprayed steel | Color sprayed steel | Color sprayed steel | Color sprayed steel | |
| Insulation | VIP + PURF | VIP + PURF | VIP + PURF | VIP + PURF | VIP + PURF | |
| Measurement | Capacity | 338/11.93 L/cuft | 338/11.93 L/cuft | 588/20.76 L/cuft | 728/25.7 L/cuft | 838/29.59 L/cuft |
| Exterior Size | 854*1006*1907 mm | 872*1028*1945.5 mm |
872*1192*1994.5 mm |
1229*1012*1994.5 mm |
1160*1172*1994.5 mm |
|
| Interior Size | 488*607*1140 mm |
608*575*1180 mm |
606*738*1310 mm |
963*571*1350 mm |
963*571*1350 mm |
|
| Package Size | 935*1070*2128 mm |
954*955*2094 mm |
970*1138*2185 mm |
1320*970*2185 mm |
1270*1100*2185 mm |
|
| Rack | Number of Racks | 1 | 2 | 2 | 3 | 3 |
| Racks | N3J-244D*12 | N3J-254D*8 | N3J-255D*16 | N3J-264D*6 | N3J-255D*24 | |
| Boxes (12 Inches) | 288 | 288 | 400 | 504 | 600 | |
| Samples(2ml) | 19200 | 28800 | 40000 | 40000 | 60000 | |
| Alarms | High/Low Temperature | Y | Y | Y | Y | Y |
| Power Failure | Y | Y | Y | Y | Y | |
| Abnormal Voltage | Y | Y | Y | Y | Y | |
| Sensor Error | Y | Y | Y | Y | Y | |
| Filter Screen Check | Y | Y | Y | Y | Y | |
| Thermostat Failure | Y | Y | Y | Y | Y | |
| Low Battery | Y | Y | Y | Y | Y | |
| Condenser Clean | Y | Y | Y | Y | Y | |
| High Ambient Temperature | Y | Y | Y | Y | Y | |
| Door Ajar | Y | Y | Y | Y | Y | |
| Power Failure Backup | 72h | 72h | 72h | 72h | 72h | |
| Accessories | Castor | Y | Y | Y | Y | Y |
| Compartment Door | 2 | 2 | 2 | 2 | 2 | |
| Access Port QTY/Diameter | 1/25MM | 1/25MM | 1/25MM | 1/25MM | 1/25MM | |
| USB Port | Y | Y | Y | Y | Y | |
| Chart Recorder | Optional | Optional | Optional | Optional | Optional | |
| Data Logger | Optional | Optional | Optional | Optional | Optional | |
| Remote Alarm Port | Y | Y | Y | Y | Y | |
Features
Certificates
ISO 13485 (Quality Management)
ISO 14001 (Environmental Management)
ISO 45001 (Occupational Health & Safety)
UL Certification (U.S. Safety Certification)
Disclaimer
This product is strictly for laboratory research use only (RUO). All other uses, including diagnostic, clinical, or personal use, are strictly prohibited.
