TGreen Transilluminator

Description

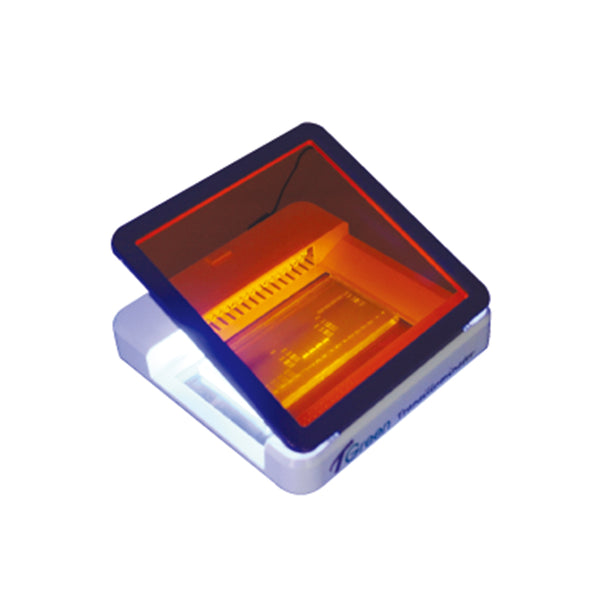

TGreen Transilluminator adopts LED blue light source, amber filter and 470-520 nm excitation light material, which can be used for observation and cutting of gels loaded with GFP protein, or nucleic acid stained with a variety of safety dyes/ EB. The TGreen Transilluminator can achieve perfect gel observation and cutting effect with no ultraviolet radiation, and provide a safe and humanized laboratory environment.

This instrument can also be applied to other fluorescence observation with excitation wavelengths of 470-520 nm, such as proteins, small animals and plants with GFP tag.

Features

•  High sensitivity: When used with GeneGreen, as low as 0.5 ng (1000 bp) dsDNA can be observed.

• Safe: Blue light source has no damage to human body, gel and sample.

• Wide application range: Compatible fluorescent dyes include GeneGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, EB etc.

• Long service life: The service life of LED lamps is 50,000 hours.

• Humanization: Multi-angle rotation of filter facilitates gel cutting.

Specifications

Optional Matching Consumables

Gel Cutter (OSE-GC)

With TIANGEN's unique Gel Cutter (OSE-GC), gel-cutting is no longer troublesome. With a simple press and push, The gel block can be directly transfer to the EP tube, and the whole gel-cutting process can be completed.

Documents

OSE-470-TGreen Transilluminator-OS221024
