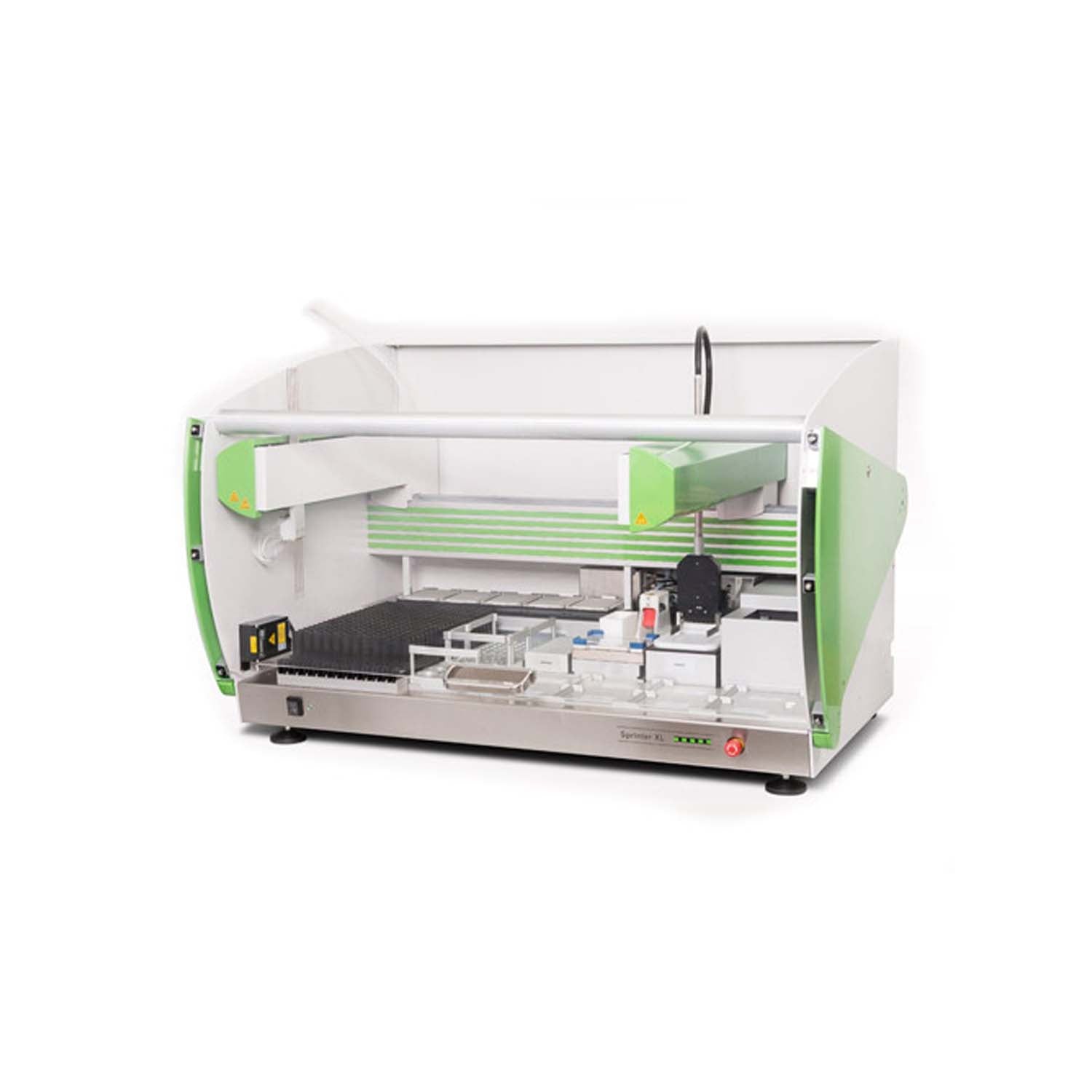

Sprinter XL Fast and Reliable IFT Automation for Medium and High Throughput
Description
With the Sprinter XL, EUROIMMUN provides a flexible solution for fully automated processing of immunofluorescence tests for medium- and high-throughput laboratories. The system performs sample identification, dilution, and transfer, as well as all washing and incubation steps.
Sprinter XL can also be configured as a combination system for additional ELISA processing, enabling integrated automation of multiple assay workflows on a single platform.
- Flexible automation for ELISA and immunofluorescence tests on one device
- Reliable traceability with integrated barcode reader and optional slide matrix code identification
- Efficient carryover-free pipetting using four washable needles, two independent robot arms, and optimized workflow calculation
- User-friendly data communication with LIS or EUROLabOffice for simplified routine laboratory workflows
- Configurable capacity for up to 160 or 240 samples and up to 30 slides or 6 ELISA plates per run
Specifications
| Parameter | Specification |
|---|---|
| Sample Types | Serum, plasma and CSF |
| Sample Capacity | Up to 160 or 240 samples |
| Slide Capacity | Up to 30 slides (combination of slides with 10 and 50 reaction fields possible) or up to 6 ELISA plates |
| Sample Tubes | Outer diameter 10–16 mm, height up to 100 mm |
| Pipetting Volume | 5 μl – 1000 μl, 1 μl increments |
| Traceability | Automated registration of samples, optional automated registration of slides |
| Dimensions (W × D × H) | 46.85 × 33.46 × 27.95 in |
| Weight | 330.69 lbs |
Key Features
Fully Automated IFT & ELISA Processing
Integrated system enables seamless automation of immunofluorescence and ELISA workflows within a single platform.
High Throughput Flexibility
Supports up to 160 or 240 samples and up to 30 slides or 6 ELISA plates per run for scalable laboratory operations.
Advanced Traceability System
Built-in barcode reader and optional slide matrix code recognition ensure accurate sample tracking and data integrity.
Precision Pipetting Technology
Four washable needles and dual robotic arms deliver carryover-free pipetting with optimized workflow efficiency.
Comprehensive Workflow Automation
Automates sample identification, dilution, transfer, washing, and incubation steps to minimize manual intervention.
LIS Integration & Smart Data Handling
Compatible with LIS and EUROLabOffice for streamlined data communication and laboratory management.
Configurable System Design
Flexible instrument configuration adapts to varying laboratory throughput and application requirements.
Applications
Automated IFT/IFA Processing: Automated processing of indirect immunofluorescence tests in clinical laboratories.
High-Throughput Diagnostics: Supports autoimmune and infectious disease testing in medium- to high-volume environments.
ELISA Workflow Automation: Enables integrated ELISA assay processing and workflow consolidation on one system.
Routine Diagnostic Laboratories: Ideal for laboratories requiring standardized, traceable, and reproducible workflows.
Medium- to High-Volume Sample Processing: Designed for efficient handling of larger daily testing demands.
Workflow Optimization: Reduces manual handling while improving operational consistency and reproducibility.
