Description

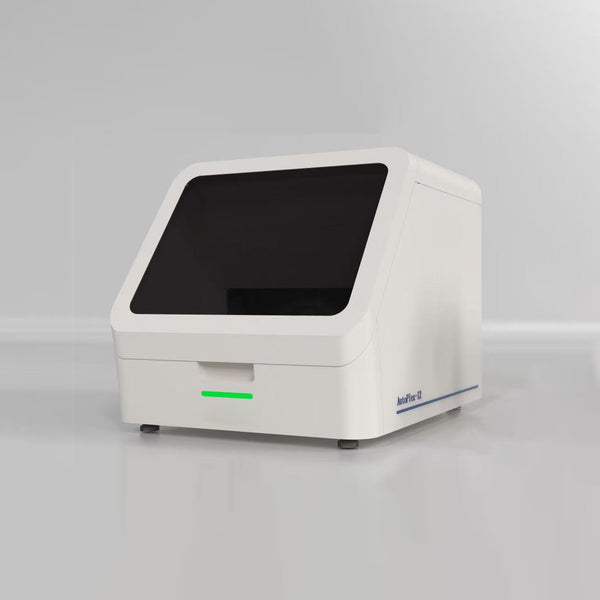

The AutoPlex-12 is a fully automatic fluorescent PCR analysis system that integrates nucleic acid extraction, PCR amplification, and fluorescence detection in a closed environment. It supports simultaneous testing of up to 12 samples, each capable of detecting up to 16 genetic targets, achieving efficient “sample-in, result-out” workflows. Using pre-dispensed reagent strips and magnetic bead extraction technology, the system offers high sensitivity, stable results, and minimized hands-on time. Its open platform design ensures compatibility with a wide range of fluorescent quantitative PCR reagent systems, both liquid and lyophilized, making it ideal for hospitals, CDC laboratories, customs inspection, and scientific research institutions.
Specification
This instrument uses the magnetic bead method for nucleic acid extraction, which is different from other mobile liquid magnetic bead purification methods. The method is to transfer the magnetic beads in the reagent strip containing specific reagents. The magnetic rod is matched with the disposable magnetic rod cover, and the magnetic rod and the magnetic rod cover are separated to realize the collection, release, transfer, incubation, and elution of the magnetic beads. The method has the advantages of high degree of automation, fast extraction speed, stable results, and easy operation.
| Specification | AutoPlex-12 |
| Sample Capacity | 1–12 samples |
| Dimensions | 610 × 711 × 538 mm |
| Weight | 70 kg |
| Power Supply / Frequency | AC 110 V / 60 Hz |
| Power Consumption | 800 VA |
| Sound Pressure Level | ≤ 70 dB(A) |
| Interface | USB |
| Sample Format | Standard 200 µL PCR tube |
| Reaction Volume | 10 – 50 µL |
| Thermal Cycling Technology | Peltier-based thermal cycling |
| Maximum Heating / Cooling Rate | Heating: up to 7.0 °C/s; Cooling: up to 5.7 °C/s |
| Temperature Range | Ambient – 99 °C |
| Temperature Accuracy | ± 0.15 °C |
| Temperature Uniformity | ± 0.18 °C |
| Excitation Light Source | Four monochromatic high-efficiency LEDs |
| Detection Module | SiPMT (Silicon Photomultiplier Tube) |
| Detection Mode | Time-resolved real-time scanning |
| Excitation / Detection Range | 455 – 650 nm / 510 – 750 nm |
| Fluorescence Channels | 4 channels |
Features
-
Rapid detection: Fast; the sample can be entered and the result can be obtained within 30 minutes at the shortest, significantly shortening the waiting time.
-
Flexible configuration: Small size, strong scalability, easy to integrate multiple units, suitable for a variety of usage scenarios. Can be placed in the ultra-clean table.
-
Innovation: A uniquely designed sealing device with PCR-designed solid paraffin effectively prevents contamination during amplification.
