Description

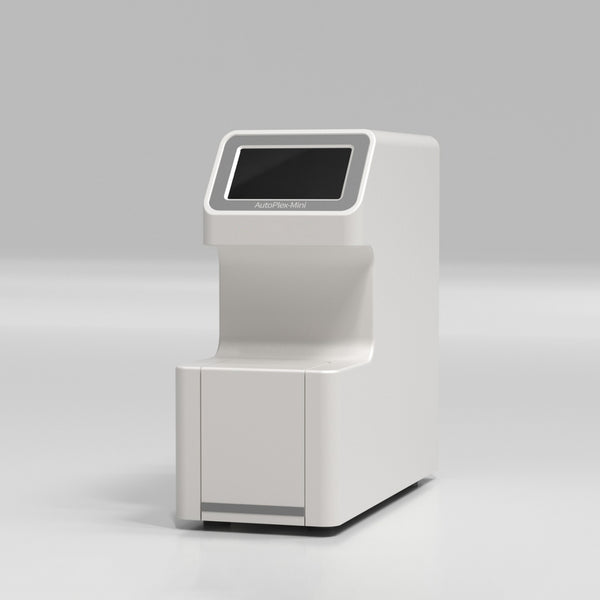

The AutoPlex-Mini is a compact, single-channel automatic fluorescent PCR analyzer that performs nucleic acid extraction, PCR amplification, and real-time fluorescence detection within a fully closed environment. Designed for single-sample detection, it supports up to 16 targets per sample, delivering fast and reliable molecular testing with minimal operation. Utilizing magnetic bead-based extraction and pre-packaged reagents, the AutoPlex-Mini offers true “sample-in, result-out” convenience. Its lightweight, calibration-free design and low power requirements make it ideal for point-of-care, emergency testing, or small-scale laboratory applications.
Specification
This instrument uses the magnetic bead method for nucleic acid extraction, which is different from other mobile liquid magnetic bead purification methods. The method is to transfer the magnetic beads in the reagent strip containing specific reagents. The magnetic rod is matched with the disposable magnetic rod cover, and the magnetic rod and the magnetic rod cover are separated to realize the collection, release, transfer, incubation, and elution of the magnetic beads. The method has the advantages of high degree of automation, fast extraction speed, stable results, and easy operation.
| Specification | AutoPlex-12 Mini |
| Sample Capacity | 1 sample |
| Dimensions | 155 × 383 × 365 mm |
| Weight | 8 kg |
| Power Supply / Frequency | AC 110 V / 60 Hz |
| Power Consumption | 800 VA |
| Sound Pressure Level | ≤ 70 dB(A) |
| Interface | USB |
| Sample Format | Standard 200 µL PCR tube |
| Reaction Volume | 10 – 50 µL |
| Thermal Cycling Technology | Peltier-based thermal cycling |
| Maximum Heating / Cooling Rate | Heating: up to 7.8 °C/s; Cooling: up to 5.6 °C/s |
| Temperature Range | Ambient – 99 °C |
| Temperature Accuracy | ± 0.15 °C |
| Temperature Uniformity | ± 0.3 °C |
| Excitation Light Source | Four monochromatic high-efficiency LEDs |
| Detection Module | SiPMT (Silicon Photomultiplier Tube) |
| Detection Mode | Time-resolved real-time scanning |
| Excitation / Detection Range | 455 – 650 nm / 500 – 720 nm |
| Fluorescence Channels | 4 channels |
Features
-
Rapid detection: Fast; the sample can be entered and the result can be obtained within 30 minutes at the shortest, significantly shortening the waiting time.
-
Flexible configuration: Small size, strong scalability, easy to integrate multiple units, suitable for a variety of usage scenarios. Can be placed in the ultra-clean table.
-
Innovation: A uniquely designed sealing device with PCR-designed solid paraffin effectively prevents contamination during amplification.
