Description

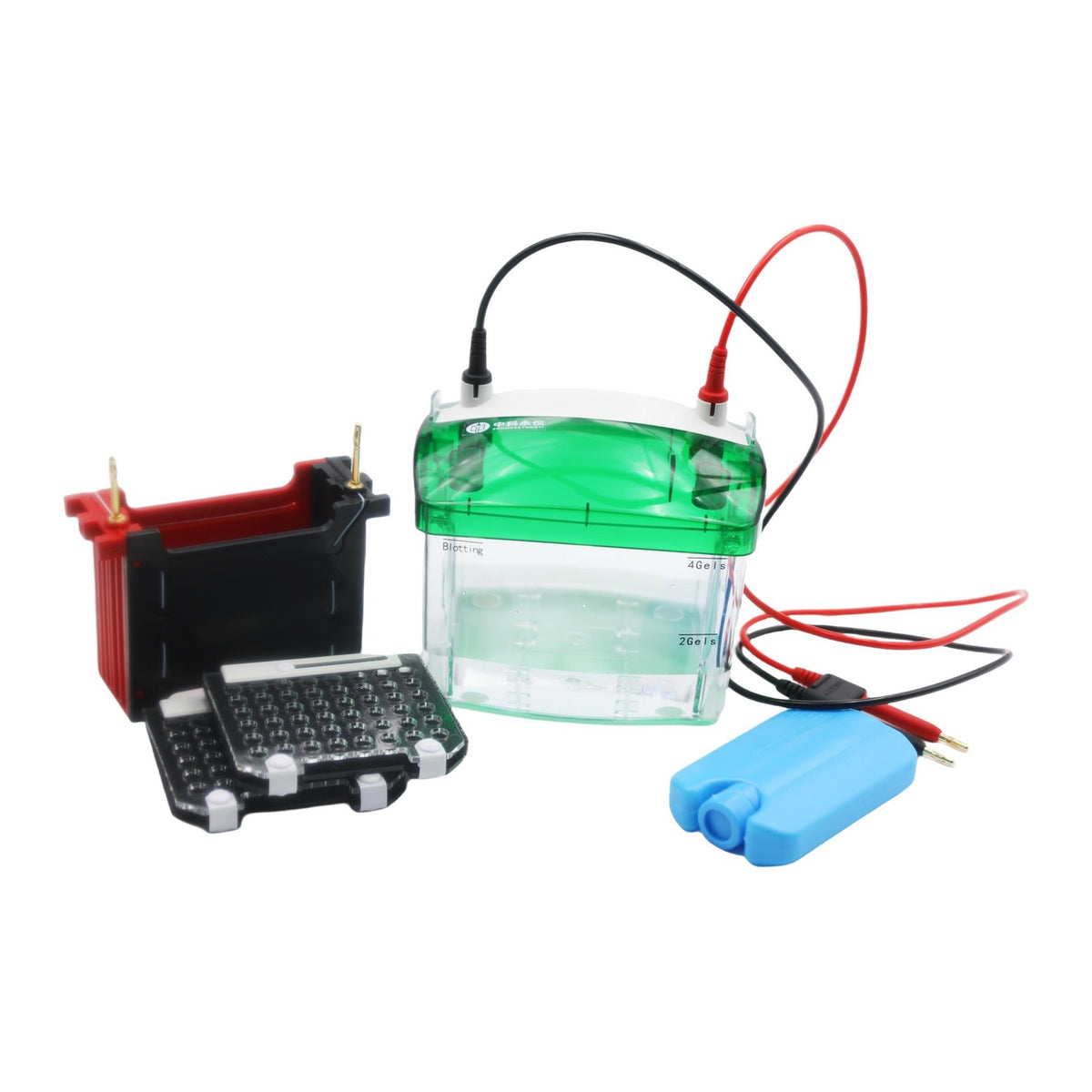

Laboratories transferring protein samples from small gels may need to process more than one gel while maintaining the correct transfer orientation and controlling the heat generated during the transfer process. This mini wet transfer system is designed for rapid, high-quality blot transfer of small gels and transfer electrophoresis of protein samples.
The two gel transfer system accommodates two gel holder sandwich transfer cassettes. Two 75 × 100 mm gels can be transferred simultaneously within one hour, while lower-intensity operation supports overnight transfer.
The electrode wires are positioned 4 cm apart. This close electrode spacing produces a strong electric field for efficient protein transfer. The electrophoretic protein transfer system uses 99.99% high-purity platinum electrode wire for conductivity and corrosion resistance.
Red and black markings identify the transfer cassettes and electrodes, helping users maintain the correct gel orientation during transfer. A dedicated open gel sandwich cassette supports straightforward operation, while the included blue ice box absorbs heat generated during the transfer process.
The mini gel transfer tank is manufactured from high-transparency injection-molded polycarbonate. It is compatible with the buffer tank and cover of the corresponding vertical electrophoresis tank.
Specifications
| Item | Specifications |
|---|---|
| Device Type | Mini wet transfer system |
| Transfer Method | Wet transfer electrophoresis |
| Application | Blot transfer of small gels and transfer electrophoresis of protein samples |
| Transfer Area | 100 × 75 mm |
| Gel Capacity | Two gels |
| Gel Size | 75 × 100 mm |
| Transfer Cassettes | Two gel holder sandwich transfer cassettes |
| Electrode Distance | 4 cm |
| Electrode Wire | 99.99% high-purity platinum |
| Tank Construction | High-transparency injection-molded polycarbonate |
| Transfer Options | Two gels within one hour or lower-intensity overnight transfer |
| Orientation Identification | Red and black markings on the transfer cassettes and electrodes |
| Cooling Unit | Blue ice box |
| Compatibility | Compatible with the buffer tank and cover of the corresponding vertical electrophoresis tank |
| Included Buffer Tank | 1 |
| Included Top Cover | 1 |
| Included Electrophoretic Wire | 1 |
| Included Electrotransfer Core Module | 1 |
| Included Gel Holder Cassettes | 2 |
| Included Blotting Filter Pads | 4 |
| Included Cooling Unit | 1 blue ice box |
Features
- Simultaneous two-gel transfer: Two 75 × 100 mm gels can be transferred at the same time.
- Rapid and overnight transfer options: The mini blotting system supports transfer within one hour or lower-intensity overnight transfer.
- Close electrode spacing: The electrode wires are positioned 4 cm apart to produce a strong electric field for efficient protein transfer.
- High-purity platinum electrode wire: The 99.99% high-purity platinum electrode wire provides conductivity and corrosion resistance.
- Color-coded transfer orientation: Red and black markings on the transfer cassettes and electrodes help maintain the correct gel orientation during transfer.
- Open gel sandwich cassettes: The dedicated open cassette design supports straightforward transfer sandwich operation.
- Integrated cooling unit: The included blue ice box absorbs heat generated during the transfer process.
- Transparent polycarbonate tank: The tank is manufactured from high-transparency injection-molded polycarbonate.
- Shared tank compatibility: The wet transfer module is compatible with the buffer tank and cover of the corresponding vertical electrophoresis tank.
Application
- Rapid, high-quality blot transfer of small gels.
- Transfer electrophoresis of protein samples.
- Simultaneous transfer of two 75 × 100 mm gels.
- Protein transfer completed within one hour.
- Lower-intensity overnight transfer.
- Transfer operation using the buffer tank and cover of the corresponding vertical electrophoresis tank.
FAQ
What is this mini wet transfer system used for?
It is used for rapid, high-quality blot transfer of small gels and transfer electrophoresis of protein samples.
How many gels can the transfer system process?
The two gel transfer system accommodates two gel holder sandwich transfer cassettes and can transfer two gels simultaneously.
What gel size can the mini gel transfer tank accommodate?
The system is designed to transfer two 75 × 100 mm gels.
What is the transfer area?
The transfer area is 100 × 75 mm.
How long does the protein transfer process take?
Two 75 × 100 mm gels can be transferred simultaneously within one hour. The system also supports lower-intensity overnight transfer.
Does the system support overnight transfer?
Yes. In addition to transfer within one hour, the system can be used for lower-intensity overnight transfer.
What is the distance between the electrode wires?
The electrode wires are positioned 4 cm apart to produce a strong electric field for efficient protein transfer.
What material is used for the electrode wire?
The electrophoretic protein transfer system uses 99.99% high-purity platinum electrode wire for conductivity and corrosion resistance.
How does the system identify the correct transfer orientation?
Red and black markings identify the transfer cassettes and electrodes, helping users maintain the correct gel orientation during transfer.
What type of transfer cassette is included?
The system includes two dedicated open gel holder sandwich transfer cassettes.
Does the transfer tank include a cooling unit?
Yes. One blue ice box is included to absorb heat generated during the transfer process.
What is the transfer tank made from?
The tank is made from high-transparency injection-molded polycarbonate.
Is the transfer module compatible with a vertical electrophoresis tank?
The transfer module is compatible with the buffer tank and cover of the corresponding vertical electrophoresis tank.
How many blotting filter pads are included?
Four blotting filter pads are included.
What components are supplied with the system?
The supplied components include one buffer tank, one top cover, one electrophoretic wire, one electrotransfer core module, two gel holder sandwich transfer cassettes, four blotting filter pads and one blue ice box.
