Description

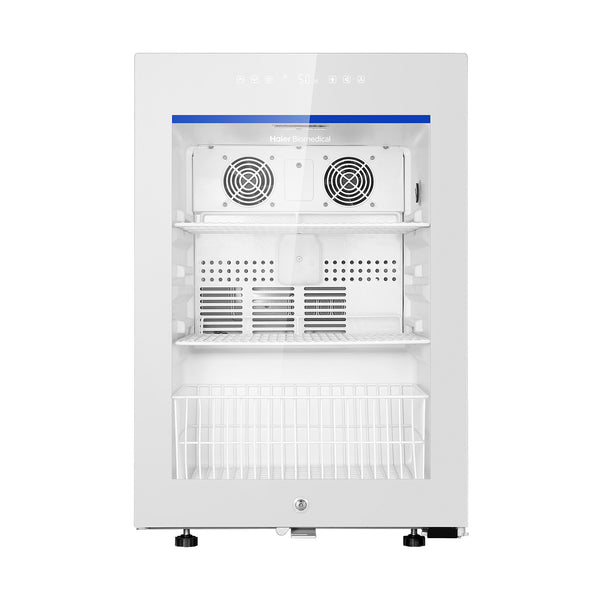

Used for storage of medicines, vaccines, reagents, biological products and other items that require a temperature between 2-8°C in hospitals, pharmacies, pharmaceutical factories, clinics and laboratories etc. (GD for Glass Door)
Specification
| Model | HYC-85GD | |
| Technical Data | Cabinet Type | Counter-Top / Under-Counter, Glass Door |
| Climate Class (°C) | N, 16~32 | |
| Cooling Type | Forced Air Cooling | |
| Defrost Mode | Auto | |
| Refrigerant | R600a | |
| Sound Level (dB(A)) | 35 | |
| Performance | Temperature Range (°C) | 2~8 |
| Control | Will the fan stop automatically when opening the door | Y |
| Controller | Microprocessor | |
| Display | LED | |
| Electrical Data | Power Supply (V/Hz) | 220~240/50 |
| Electrical Current (A) | 0.98 | |
| Performance Characteristics | Temperature Sensor | NTC |
| Power Consumption (kWh/24h) | 0.99 | |
| Dimensions | Capacity (L/Cu.Ft) | 85/3.0 |
| Net/Gross Weight (approx) (kg) | 36 / 41 | |
| Net/Gross Weight (approx) (lbs) | 79.4 / 90.4 | |
| Interior Dimensions (W*D*H) (mm) | 405*405*555 | |
| Interior Dimensions (W*D*H) (in) | 15.9*15.9*21.9 | |
| Exterior Dimensions (W*D*H) (mm) | 495*550*740 | |
| Exterior Dimensions (W*D*H) (in) | 19.5*21.7*29.1 | |
| Packing Dimensions (W*D*H) (mm) | 590*650*830 | |
| Packing Dimensions (W*D*H) (in) | 23.2*25.6*32.7 | |
| Container Load (20'/40'/40'H) | 54/120/180 | |
| Alarms | High/Low Temperature | Y |
| High Ambient Temperature | Y | |
| Door Ajar | Y | |
| Power Failure | Y | |
| Low Battery | Y | |
| Sensor Error | Y | |
| Communication Failure | Y | |
| Condenser Heat | N | |
| Remote Alarm | Y | |
| Audible and Visual Alarm | Y | |
| Accessories | Caster | 2 |
| Foot | 2 | |
| Porthole | 1 | |
| Shelves/Basket | 2/1 | |
| Printer | N/A | |
| Chart Recorder | N/A | |
| USB Interface | Optional | |
| RS485 | Optional | |
| Material | Exterior Material | Painted Steel |
| Interior Material | Polystyrene | |
| Door Thickness (mm) | 50 | |
| Cabinet Thickness (mm) | 45 | |
| Shelves Material | Steel Wire, Coated with Plastic | |
| Refrigerant Model | R600a, 45g | |
| Other | Certification | CE, UKCA, DIN13277 (Optional) |
Features
-
Eco-friendly Hydrocarbon Refrigerant
Eco-friendly hydrocarbon refrigerant (R600a) and CFC-free polyurethane insulation for reduced global warming
-
Optional USB and RS485
Optional USB and RS485, easy to export temperature data
-
Excellent Performance
Excellent performance: temperature uniformity ≤1.5°C ①
-
Quiet Operation
Quiet operation: 35dB (A)
-
User Reversible Door Hinge
User reversible door hinge
-
Intelligent Anti-condensation
HYC-85GD: Intelligent anti-condensation: triple-paned tempered glass door with door frame heater, effectively reduces condensation even at 32°C, 80% RH ambient temperature
HYC-85FD: CFC-free solid door, highly effective insulation -
High Cooling Performance
Hermetically sealed compressor, forced-air circulation and automatic defrost to ensure high cooling performance
-
Microprocessor Controller
Microprocessor controller, display with resolution of 0.1°C
-
Multiple Alarms
Multiple alarms for safer monitoring
-
Magnetic Gasket
Magnetic gasket for positive seal
-
* ① Tested by TUV according to DIN13277
Documents
Product Brochure
▼ DOWNLOAD PDFFlyer
▼ DOWNLOAD PDFCertifications
Certificate
