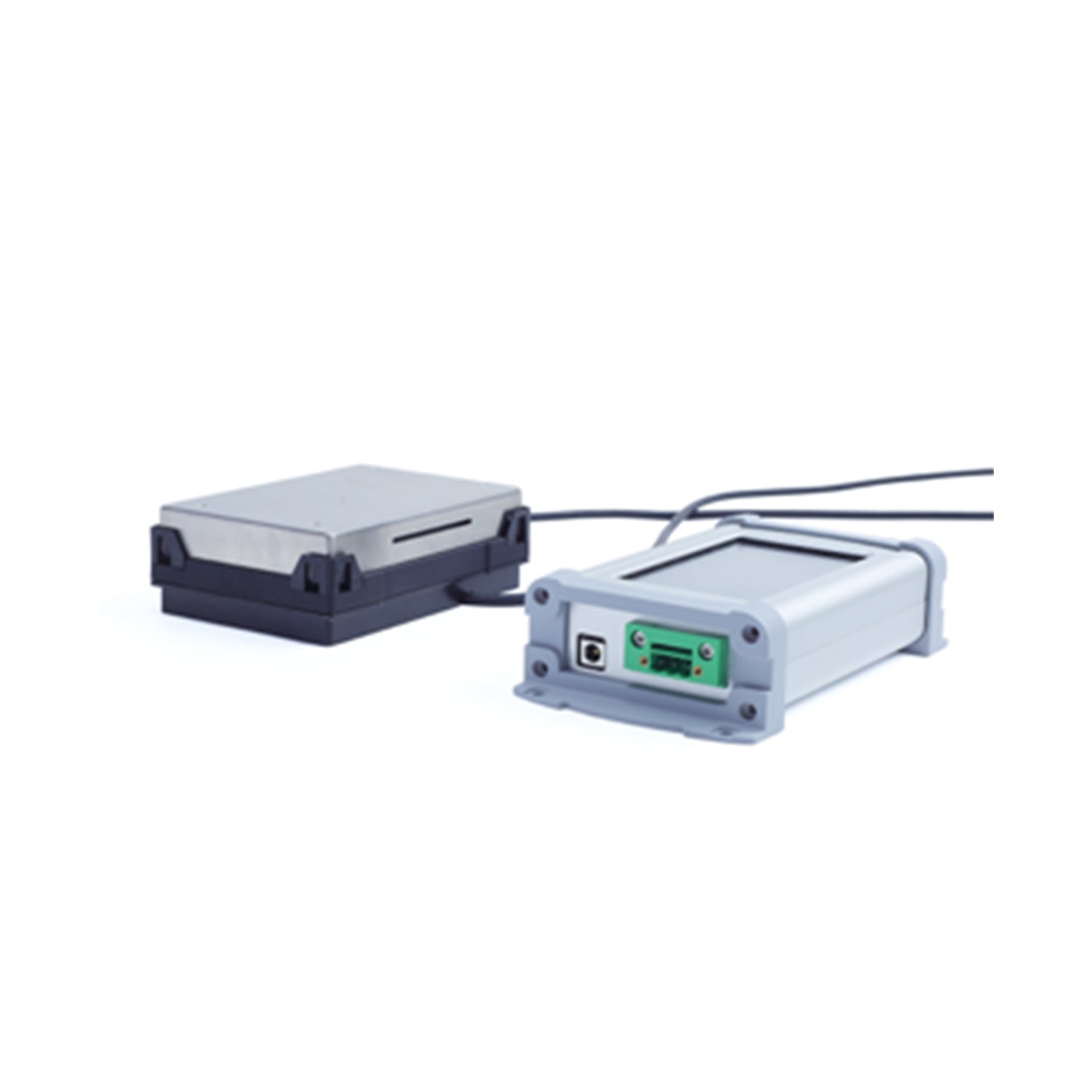

HC1 Temperature Control Platform

Description

The HC1 Temperature Control Platform is a high-performance resistive heating block designed for integration into automated workstations, featuring an aluminum-based heating substrate suitable for medium- to high-temperature incubation. Its compact design requires minimal space, with a height of only 34 mm.

The Heat Lid temperature-controlled cover can be used in combination with the HC1 Temperature Control Platform and the T1C/T1C4 series to enhance heating rates, improve temperature uniformity, and prevent sample evaporation. The system consists of a control module and a temperature control module, equipped with a display for easy monitoring. It can operate as a standalone unit or be connected to a host computer via the RS-485 communication interface for remote control.

Features

HC1 Temperature Control Platform

• Wide Temperature Range

  The HC1 platform can be set from room temperature +5°C to 110°C, and the Heat Lid operates within the same range.

• Rapid Heating

  The HC1 platform can heat from 30°C to 95°C in just 2 minutes.

• Enhanced Performance with Heat Lid

  Using the Heat Lid accelerates heating, improves temperature uniformity, and reduces sample loss due to evaporation.

Heat Lid Temperature Control Heated Lid

• Easy Integration

  The HC1 Temperature Control Platform is compact and occupies only a single ANSI/SLAS plate position, with an instrument height of just 3.4 cm.

• Open Communication

  Supports Modbus communication protocol over the RS-485 bus for flexible integration with automated workstations and host systems.

Specifications

Components
