Sku: EU-LAB-ELW

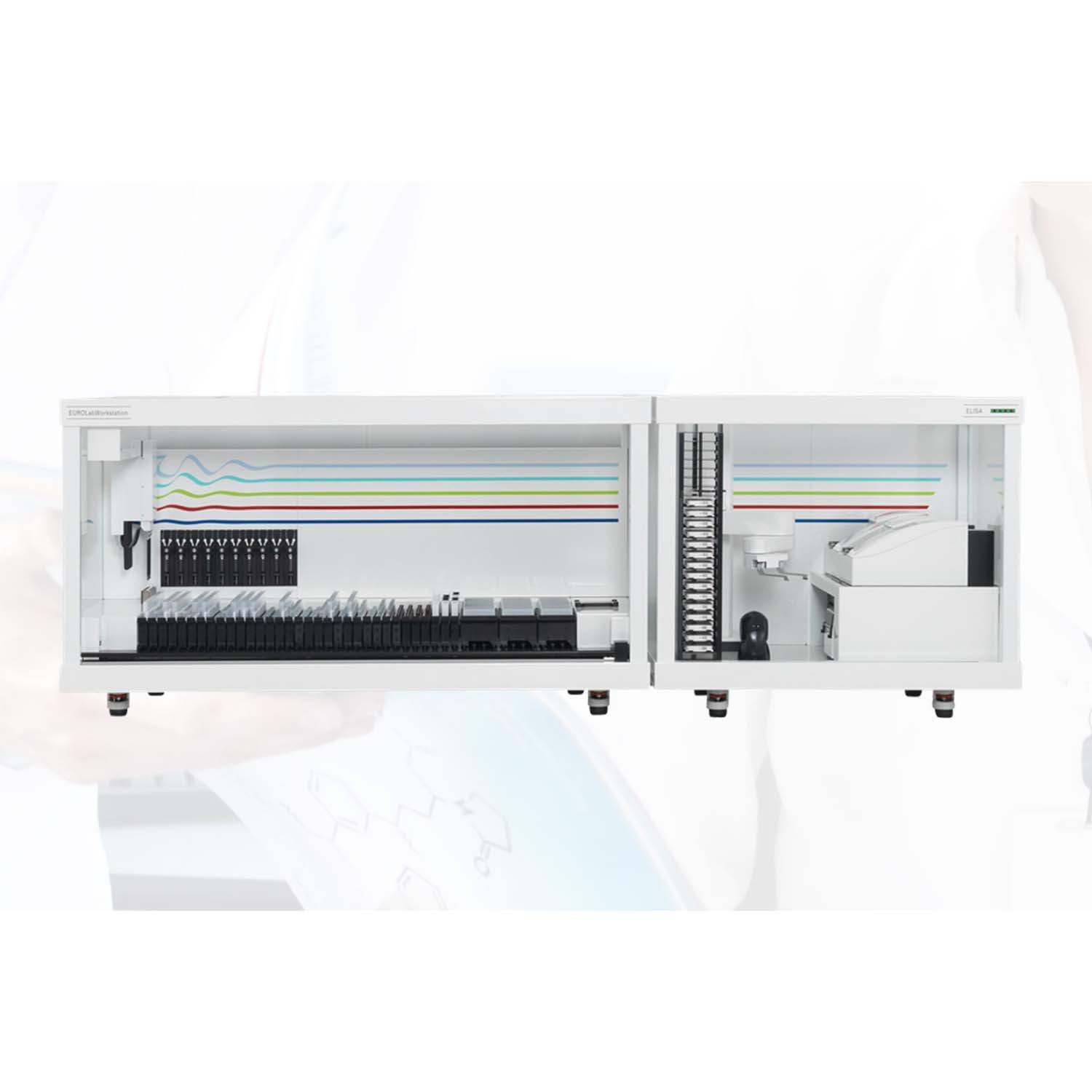

EUROLabWorkstation ELISA Fully Automated, User-friendly ELISA Processing
Description
The EUROLabWorkstation ELISA is a fully automated complete solution for processing ELISA kits in laboratories with high sample throughput. The system was developed by EUROIMMUN with a focus on efficiency and flexibility, in order to accommodate the ever increasing sample numbers and changing dynamics in the routine laboratory.
Ten washable needles, complementary accessories and a separate robotic arm for handling the microplates enable unparalleled sample throughput. State-of-the-art, intuitive software guides the user graphically through all work steps.
- Fully automated processing of ELISA from primary sample to result
- Highest capacity of up to 15 microplates and up to 700 samples in a single worklist
- Highest throughput of up to 200 tests per hour due to fast pipetting of samples and reagents using 10 pipetting channels and efficient processing of microplates
- Flexible open system for ELISA tests from different manufacturers
- Minimal hands-on time and high integrity of results due to use of bar/matrix codes to identify samples, reagents and accessories
Specifications
| Parameter | Specification |
|---|---|
| Sample Types | Plasma, serum, CSF, and DBS |
| Sample Capacity | > 700 samples |
| Plate Capacity | 15 |
| Parameter Capacity per Run | Up to 180 |
| Incubators | Up to 8 |
| Shakable Incubators | Up to 4 |
| Throughput | > 200 tests per hour |
| Sample Tubes | Outer diameter 10–16 mm, height up to 100 mm |
| Pipetting Volume | 5 μl – 1100 μl, 1 μl increments |
| Traceability | 2 integrated code scanners for identification of samples, reagents, dilution plates and ELISA plates |
| User Interface | Touchscreen PC with EUROLabWorkstation ELISA software Microsoft® Windows® 10 LTSB |
| Online Connection | ASTM interface, bi-directional |
| Dimensions (W × D × H) | 114.96 × 31.93 × 33.82 in |
| Weight | 992.08 lbs |
Key Features
Optimize workflows and obtain maximum process efficiency
Mechanical separation of liquid handling and plate transport allows simultaneous operations
10 needles provide unrivaled performance
Customize system design for different workflow needs
Individual configuration of functionality and operating volume
45 tracks for loading samples and reagents
Up to 8 temperature-controlled incubators
Reduce hands-on time and increase process reliability
Intelligent software guides the operator through all steps
Intuitive graphical user interface for simple run management
Overview process status and directly access all significant information
Detailed dashboard with resource overview, plate status and pending actions
Inspect ELISA plates and evaluate results without delay
Continuous and immediate access to ELISA plates during active run
No need to interrupt running processes
Obtain precise and correct results
Coated stainless steel needles and precision pumps guarantee optimal pipetting precision
Liquid level detection allows for reliable pipetting processes
Applications
The EUROLabWorkstation ELISA is designed for high-throughput laboratories requiring fully automated, standardized ELISA processing with minimal hands-on time and maximum reproducibility. Typical applications include:
Clinical diagnostics laboratories: for large-scale serological testing (e.g., infectious diseases, autoimmune markers, allergy testing)
Hospital and reference labs: Handling high daily sample volumes with strict traceability requirements
Biotechnology and pharmaceutical research: for biomarker screening, immunoassay development, and validation workflows
Blood banks and epidemiological studies: Requiring reliable, high-capacity ELISA processing
Academic and research institutions: Performing routine ELISA-based assays with scalable throughput
Contract research organizations (CROs): Supporting high-throughput assay processing and sample analysis
