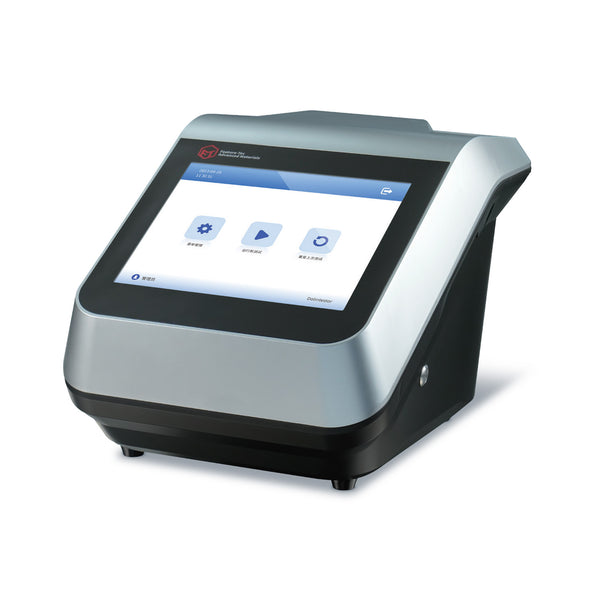

Dolintestor FT 3.0 Integrity Tester

$29,500.00

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Sku: BF-FT3
Tags:
Availability:
AVAILABLE
In stock & estimated to ship in 3-7 days by May 28, 2026
REQUEST A QUOTE Request Bulk Quote

Description

Dolintestor FT 3.0 Integrity Tester is a high-quality testing instrument independently developed by Feature-tec according to the current GAMP guidelines. It ensures accurate testing of filter integrity with short testing time and high accuracy, suitable for any cleanroom environment.

Dolintestor FT3.0 Integrity Tester provides testing functions including manual bubble point, basic bubble point, enhanced bubble point, diffusion flow, water intrusion, and pressure decay. It not only meets the integrity testing requirements of sterilizing filters but also meets the integrity testing requirements of ultrafiltration membrane cartridges, hollow fiber membranes and virus removal filter. The testing scenarios can be both offline and online.

Specification

Items Parameters
Model Dolintestor FT 3.0
Dustproof Grade IP64
Computer Power AC100-240V, 50/60HZ, 110W
Operating System LINUX
Display Type: Color touchscreen; Size: 12 inches; Resolution: 1024*768
Serial port connection Ethernet port; RS232; USB port; Wi-Fi; remote system updates and remote fault diagnosis.
Dimension / Weight Dimension/mm 346*457*308 (L*W*H)
Weight/kg 9.8
Testing Performance Max. Operating Pressure 10000mbar
Min. Inlet Pressure 100mbar
Testing Function manual bubble point test / basic bubble point test / enhanced bubble point test / diffusion flow test / water intrusion test / pressure decay
Testing Scope Bubble Points 100-8000mbar; Diffusion Flow≤0.01-4800ml/min; Water Intrusion≤0.001-100ml/min
Testing Accuracy BubblePoints: ±50 mbar; Enhanced bubble point: ±50mbar; Diffusion Flow: ±5% or 0.05 mL/min (whichever is greater); Water Intrusion: ±5% or 0.05 mL/min (whichever is greater)
Applicable Range Symmetric and asymmetric membranes, needle filters, disc filters, capsule filters, flat filters, cartridge filters, ultrafiltration membrane cartridges, hollow, virus removal filter.
Data Management Pre-storage program max. 1000 pre-storage programs
Data storage max. 50000 test results storage
Users 1000 user accounts
Administrative privileges Username-password login with 4 levels of administrative permissions, compliant with FDA 21 CFR Part 11 requirements
Audit trail Multiple event logs, exportable in a non-modifiable format, meeting data integrity requirements
Data export Individual export of PDF files or batch export of PDF files supported.
Data backup Supports export to USB drive
Operating Conditions Environmental requirements Environmental temperature: +5°C to +40°C; Relative humidity: 10% to 80%
Suitable Environment Grade D or above
Method Online/Offline
Language Chinese/English
Print Print test results and test curves
E-Signature Supports manual or electronic signatures



Features

High performance

  • Excellent internal sealing performance to ensure the test data accuracy.
  • Optimized algorithm and automatic adjustment of intake air flow to shorten the test time.
  • Intelligent analysis capability by excluding human error in the test results, and fake cartridge test pass at extreme situation.

Testing security

  • Ex "nA" explosion-proof design concept with whole machine, equipped with explosion-proof functionality, suitable for more demanding environments;
  • IP64 protection rating, reducing the risk of cross-contamination during transportation across clean areas;
  • Robust LINUX operating system significantly reduces the risk of virus infection after networking;
  • Username-password login with 4 levels of management permissions, meeting FDA 21 CFR PART 11 requirements;
  • Comprehensive audit tracking function, recording operation logs to meet data integrity requirements.

Convenience

  • Easy to carry with 9.8kg machine weight
  • 12" HD HMI with ±88° viewing angle and 1024*768 resolution for easy operation and remote monitoring.
  • Simplified operation interface to reduce repetitive input.
  • Rich data interfaces: Ethernet port, RS232 serial interface, USB interface; capable of printing and exporting test results independently.

Reliability

  • Adopt 1‰ of full-scale high-precision digital pressure sensor to ensure high accuracy and repeatability of the test results.
  • Run self-test before every function tests to avoid distortion of test data caused by human installation errors.
  • Each test point is accurately displayed to ensure the test curve accuracy.
