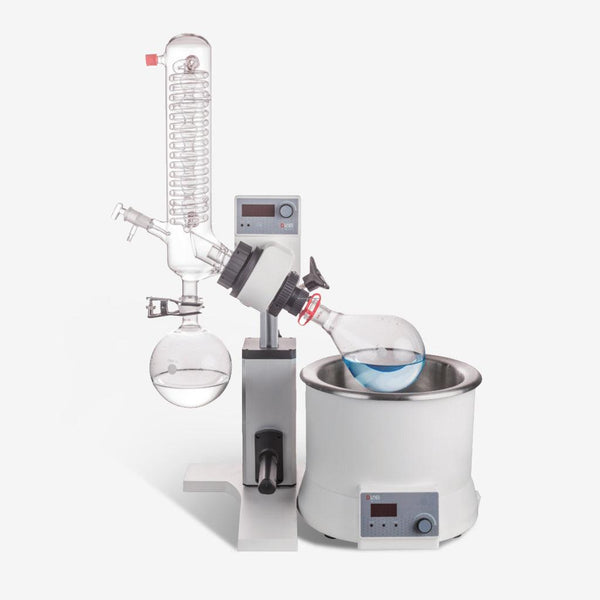

Rotary Evaporator – 1.3 Gal / 5 L – Multiple-Size Condenser – DLAB RE100-S

$2,091.00

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Sku: RE100-S 18202410
Tags:
Bulk Quotation Request

Model Detail

  • With Condenser 18202410 (1200cm² 1000ml) and LED heating bath:

    • Rotary Evaporator 5L

    • Glassware vertical, including condenser(1200cm²), evaporating flask (NS 29/32) and receiving flask (KS 35/20)

    • LED heating bath

  • With Condenser 18900476 (1200cm² 1000ml) and LED heating bath:

    • Rotary Evaporator 5L

    • Glassware vertical, including condenser(1200cm²), evaporating flask (NS 24/40) and receiving flask (KS 35/20)

    • LED heating bath

  • With Condenser (1700cm² 1000ml) and LED heating bath

    • Rotary Evaporator 5L

    • Glassware diagonal，including condenser(1700cm²), evaporating flask (NS 29/32) and receiving flask (KS 35/20)

    • LED heating bath

Features

  • 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control, make it can be used separately

  • Water/oil heating mode can be changed only through a switch.

  • Manual lift combined with auxiliary lift for precise positioning of the glassware.

  • PID control ensures high temperature accuracy at ±1C (water)

  • Overheating protection temperature at 220°C

  • Boil-dry protection, automatically power off if heating without water/oil in the heating bath

  • Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process

  • Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect

  • Ejection mechanism ensures easy exchange of evaporating flask

  • Adjustable immersion angle

  • Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance

  • Remote function provides PC control and data transmission

  • Compatible with the entire range of RE100-Pro glassware

Specifications

Specifications RE100-S
Motor Type  Brushless DC motor
Speed Range 20~200rpm
Display  LED (Speed, Temperature, Time)
Clockwise and Anti-clockwise  Yes
Heating Temperature Range  Room temp. to 180℃
Control Accuracy  Water: ±1℃ Oil: ±3℃
Heating Power  1010 W
Stroke Displacement  Manual 110mm + Auxiliary100mm
Interval Time Setting Range 1~999s
Dimension [D*W*H]
Main Unit: 440*320*450mm
Heating Bath: 300*300*240mm
Weight  Main Unit: 7kg
Heating Bath: 3kg
Permissible Ambient Temperature and Humidity 5~40 ℃, 80%RH
Protection Class  IP20
USB Interface Yes
Voltage/Frequency 100~120/200~240V 50/60 Hz
Power   1100 W
