Sku: PDC-ANA-PDX

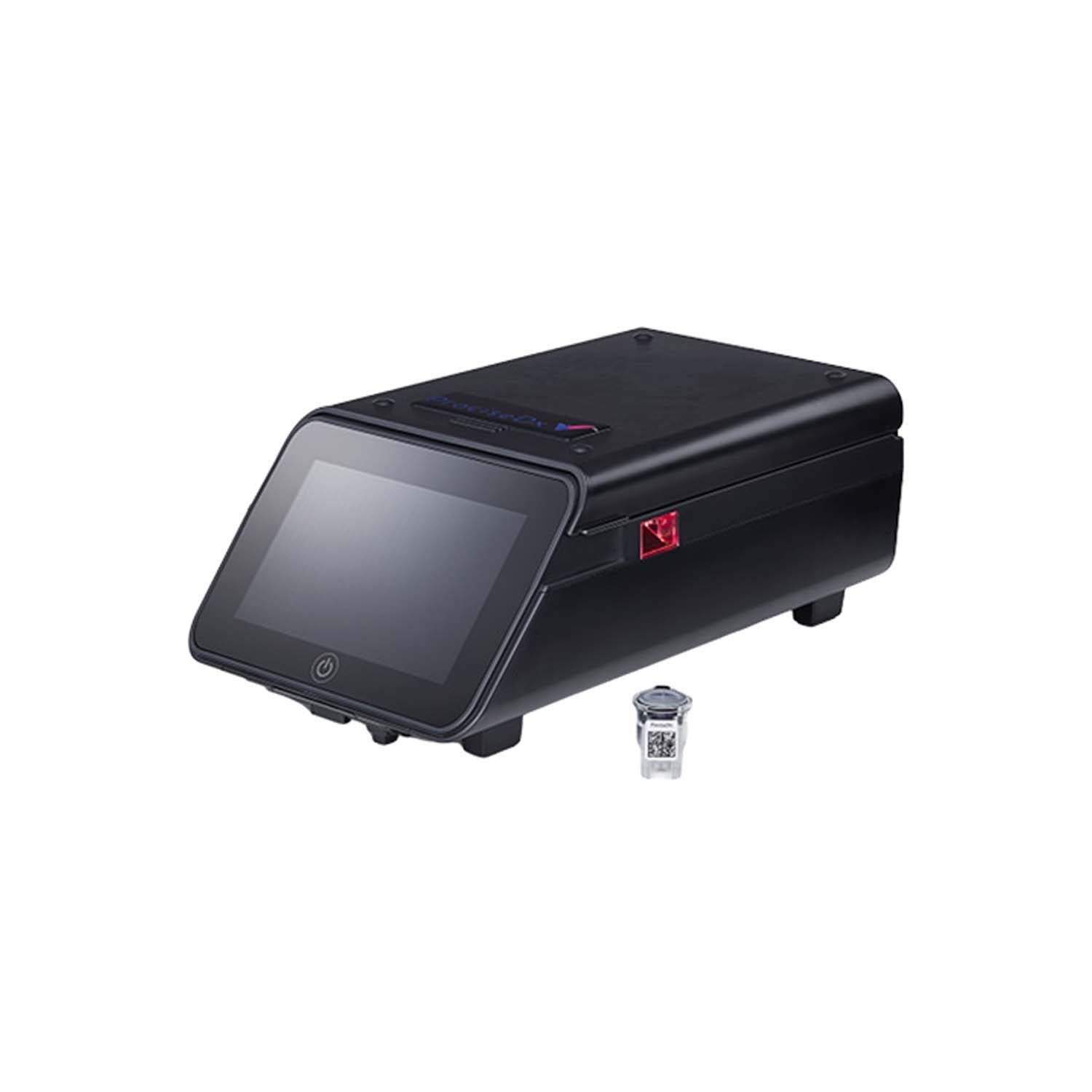

ProciseDx Analyzer TrFRET Technology for Therapeutic Drug Monitoring (TDM)
Description
The ProciseDx Analyzer is a compact, easy-to-use instrument for quantitation of drug levels in venous serum samples. It features a touchscreen interface and external barcode scanning for sample identification and tracking.
Using unique time-resolved fluorescence resonance energy transfer (trFRET) and patented Lumiphore technology, the system delivers high-quality results in less than 5 minutes.
Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 15 inch (D) × 8 inch (W) × 5.7 inch (H) (38.4 cm × 21 cm × 14.5 cm) |
| Weight | 10 lbs (4.7 kg) |
| Power Supply Input | 100–240 VAC, 50/60 Hz, auto-ranging (US / International) |
| Power Consumption | 90 VA |
| Display | 6 inch × 3.5 inch (15 cm × 9 cm) color LCD touchscreen 7 inch (17.5 cm) diagonal |
| Operating Temperature | 59°F to 86°F (15°C to 30°C) |
| Operating Humidity | 20% – 85% RH (non-condensing) |
| Patient Test Result Storage | 250 tests maximum |
| QC Results Storage | 500 results maximum |
| Calibration Results Storage | 100 results maximum |
| Fluorescence | 0 to 65 × 106 RFU ±5% at 620 nm |
| Absorbance | 0 to >3.5 OD ±0.3 OD at 575 nm and 665 nm |
| Wi-Fi | IEEE 802.11 ac/a/b/g/n 2.4 GHz / 5 GHz WEP / WPA / WPA2 |
| Ethernet | RJ45 Connector (1) 10/100/1000 BASE-T |
Key Features
Rapid Quantitative Analysis
Delivers accurate drug level measurements from serum samples in under 5 minutes.
Advanced trFRET Technology
Uses time-resolved fluorescence resonance energy transfer for high sensitivity and precision.
Proprietary Detection System
Incorporates patented Lumiphore technology for reliable and high-quality signal performance.
Compact Benchtop Design
Space-saving instrument suitable for clinical laboratories and point-of-care settings.
Intuitive Touchscreen Interface
7-inch color LCD touchscreen supports simple operation and efficient workflow management.
Barcode-Based Sample Tracking
External barcode scanning ensures accurate sample identification and traceability.
Integrated Data Storage
Stores patient results, QC data, and calibration records for efficient data management.
Flexible Connectivity
Supports Wi-Fi and Ethernet for seamless data transfer and network integration.
Broad Detection Range
Supports both fluorescence and absorbance measurements for diverse assay requirements.
Applications
Therapeutic Drug Monitoring (TDM): Quantitative measurement of drug concentrations in serum for treatment optimization.
Clinical Diagnostics: Rapid assessment of drug levels to support clinical decision-making.
Point-of-Care Testing: Fast turnaround analysis suitable for near-patient testing environments.
Pharmacokinetic Studies: Monitoring drug absorption and metabolism in clinical research.
Laboratory Workflow Optimization: Efficient and automated testing for routine clinical laboratories.
