CO2 Orbital Shaker With Remote Control - Biofargo

Introduction

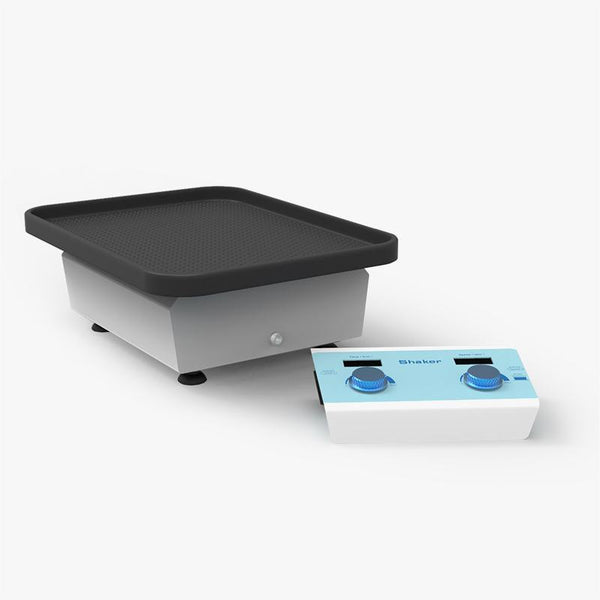

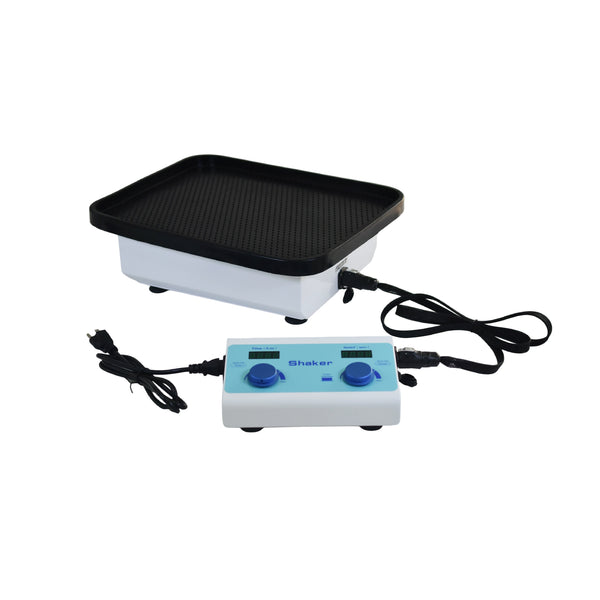

The Biofargo GSP-20 CO₂ Orbital Shaker with External Remote Controller is designed for stable, long-term operation inside CO₂ incubators, refrigerators, and greenhouse environments. All key controls and parameter displays remain outside the chamber, eliminating exposure to humidity, temperature fluctuations, and condensation. This extends instrument lifespan and ensures precise experimental control without disturbing the culture environment.

With a large load-bearing shaking platform, quiet suction-cup stabilizers, and magnetic controller design, the GSP-20 is ideal for animal cell culture, suspension cell growth, microbial assays, drug screening, and temperature-sensitive chemical reactions. A single ultra-thin flat control cable connects the controller to the shaker — maintaining a complete chamber seal during operation.

Specifications

Feature

• External Remote Controller Design

  The control panel is kept outside the incubator and connected via an ultra-thin flat cable, allowing users to adjust parameters without opening the door or disturbing internal CO₂, humidity, or temperature levels.

• Magnetic Controller Attachment

  The back of the controller includes strong built-in magnets, allowing it to stick directly onto the incubator/refrigerator door or metal surface, improving accessibility and saving bench space.

• Ultra-Thin Ribbon Cable – Maintains Airtight Seal

  A flat 1 mm-thick cable connects the controller and shaker, enabling door closure without air leakage — protecting culture conditions and maintaining environmental stability.

• Stable, Quiet, Low-Vibration Operation

  Equipped with suction-cup feet for high-speed stability and minimal vibration, ensuring smooth performance without noise interference.

• Large Platform & Strong Load Capacity

  Wide tray surface supports multiple flasks/plates simultaneously, suitable for intensive cell expansion, clone culture, or multi-batch parallel experiments.

• Suitable for Multiple Environments

  Works effectively in CO₂ incubators, low-temperature refrigerators, standard labs, and high-humidity conditions, ensuring consistent results across setups.

Kit Components

Optional Platforms

Model Number	Block types	Capacity	Size	Weight
Platform TS-A		Stainless steel platform and rubber mat combination	430×330×26mm	3.18 Kg
Conical Flask Stand TS-B		250ml × 12	400×310×60mm	2.9 Kg
Conical Flask Stand TS-C		100ml × 20	400×310×50mm	3.12 Kg
Universal Platform TS-D		1000ml × 2/500ml × 6/250ml × 6/50ml tubes× 60	370×300×70mm	3.00 Kg

FAQ

• Q1: Can the controller be attached to the incubator door?

  Yes. The controller has built-in rear magnets and can be attached to CO₂ incubator doors, refrigerators, or any iron-based metal surface for convenient access.

• Q2: Will the cable interfere with door sealing?

  No. The shaker connects through a 1 mm ultra-thin flat cable, allowing the incubator door to close fully without affecting sealing, CO₂ retention, temperature, or humidity stability.

• Q3: Can I adjust speed and settings without opening the door?

  Yes— all functions and real-time data display are outside the chamber, enabling full control without disrupting the internal culture environment.
