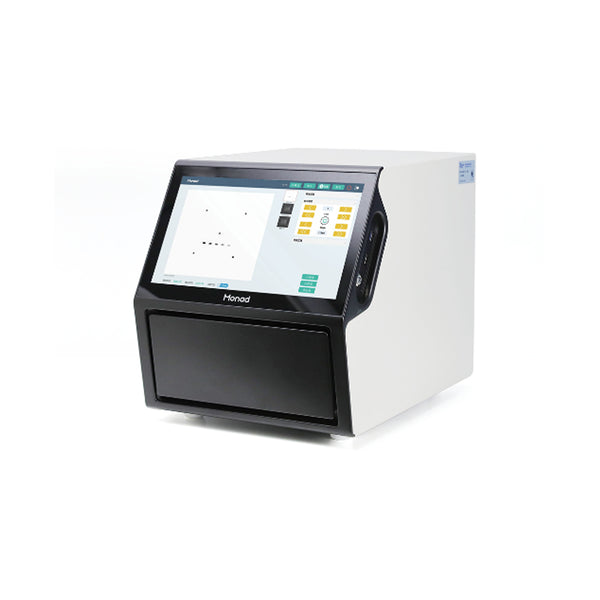

Hesper II Chemiluminescence Imaging System

Description

The Hesper II Chemiluminescence Imaging System is Mona’s next-generation fully integrated motorized sample-loading imaging platform, featuring a modern all-in-one design with a large touchscreen interface for intuitive operation and enhanced laboratory workflow efficiency.

This advanced imaging system integrates a high-performance camera assembly composed of a 15-megapixel ultra-sensitive deep-space astronomy-grade sCMOS camera, a four-stage thermoelectric cooling system, and an F0.95 ultra-large aperture lens. These core components work in precise coordination to deliver exceptional image acquisition performance under ultra-low-light conditions.

Equipped with intelligent imaging software, the Hesper II system supports Bin8 pixel binning mode, enabling an optimized balance between ultra-high sensitivity and high-resolution imaging. The system also combines automatic and manual exposure modes, as well as single-frame and multi-frame exposure acquisition, providing flexible imaging solutions for protein bands with varying abundance levels.

With its streamlined one-click imaging workflow, the Hesper II Chemiluminescence Imaging System delivers a professional and efficient solution for Western blot and chemiluminescent detection applications.

Specification

Features

• Deep-Space Astronomy-Grade Cooled sCMOS Camera

  • Scientific-Grade sCMOS Sensor
    Compared with conventional industrial CMOS sensors, the scientific-grade sCMOS sensor provides significantly higher sensitivity and superior signal-to-noise performance.

  • Ultra-High Sensitivity
    Compared with CCD-based systems, the Hesper II offers higher photoelectric conversion efficiency with reduced signal loss, enabling more reliable detection of weak chemiluminescent signals.

  • High Resolution
    Equipped with a 15-megapixel imaging sensor, delivering sharper, clearer, and more detailed images.

• Advanced Cooling and Heat Dissipation System

  • Four-Stage Thermoelectric Cooling

    Enables rapid temperature reduction and maintains stable low-temperature camera operation even under high ambient temperature conditions.

  • Hybrid Water-Cooling and Air-Cooling System

    Combines water cooling and forced-air cooling to minimize background noise and improve imaging stability during long exposure acquisition.

• User-Oriented Structural Design

  • Corrosion-Resistant Design

    The instrument housing and dark chamber are specially treated for corrosion resistance, improving durability and extending instrument service life.

  • Integrated All-in-One Platform

    The compact integrated design enhances laboratory space utilization while providing a clean and professional appearance.

• Intelligent Imaging Software with One-Click Operation

  • Multiple Exposure Modes

    Supports both single-exposure and multi-exposure imaging modes with automatic or manual exposure settings, making the system suitable for protein bands with different expression levels.

  • One-Click Imaging

    Generates chemiluminescence images, marker images, and overlay images with a single click, simplifying operation and improving visualization efficiency.

  • One-Click Batch Saving

    Supports one-click saving of multiple images with selectable output formats.

  • Raw File Management

    Supports automatic saving of raw image files and re-importing for subsequent image review and analysis.

• Comprehensive Software Functions

  • User Management and Audit Trail

    Features hierarchical user management and categorized operation log tracking, facilitating experimental traceability and laboratory management compliance.

  • Image Processing Functions

    Supports rapid image acquisition, image rotation, and other image editing functions for efficient and convenient workflow operation.
