Description

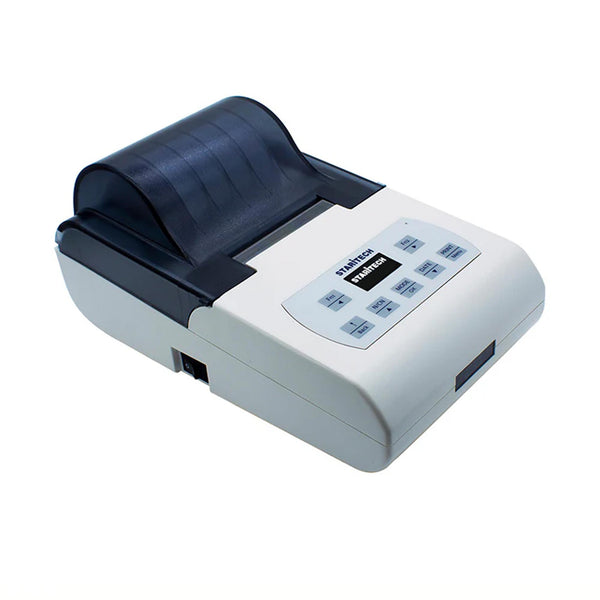

The TX110 balance printer, which has a streamlined appearance and an outstanding costeffective, completely meets the qualityrequirements of the chemical and pharmaceutical industry and GLP, GMP standard certification. From the most basic printing needs, to the wealth of applications, the TX110 series balance printer provides users witha flexible choice.

The printer combines high performance and multiple functions to offer quality and durability in a portable printer. The printer offers advanced functionality in an easy to use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.

Suffix	Compatible Manufacturer	Application Range
SA	Sartorius	All electronic balances and weighing instruments
ME	Mettler	Most electronic balances and weighing instruments
XR	Mettler	Mettler XPR, XSR, XPR2 series balances
AU	Ohaus	All electronic balances, weighing instruments, and moisture analyzers
SI	SHIMADZU	All electronic balances
MH	Metrohm	Electrochemical products
CN	Chinese brands (e.g., Jingke, Jingmi, Shuangjie, Longteng, Youke, Xingyun)	All Chinese brand electronic balances

Features

Support List: SHIMADZU, SARTORIUS, METTLER, AND, ADAM, OHAUS,SHINKO…ect.
High speed dot printing, printed pages are suitable for long term preservation, ISO/GLP compliant Data Printout.
128x64 OLED display.
Built in realtime clock.
Support weighing, statistical, sum, mean and formulation function.
Editable title and tail.
Sample name and batch number can be inputted and printed.
Data export: all data from balance can be exported to U Disk in excel or txt file.
Periodic printing.
Barcode Scanner Support.

Specifications

Printing method	Impact dot
Inking	Ink ribbon (EPSON ERC22 or ERC09)
Printing format	24 digits / line (5 × 7 dot matrix)
Character size	1.7mm (W) × 2.6mm (H) ASCII
Paper	Regular paper 2 1/4" Width, 1.96" in Diameter（57mm Width, 50mm in Diameter）
Printer mechanism durability	1.5 million lines
Operation temperature range	0 to 50°C
Input voltage	DC 12V (1.5A)
Interface	RS232C
Gross weight (with packaging)	500g approx

Physical Dimensions

Consumables	Specification
Printing Paper	2.25" x 1.97" (57x50 mm (diameter))
Adhesive Printing Paper	2.25" x 1.97" (57x50 mm (diameter))
Ribbon	ERC-09B, Black
Power Adapter	12V / 2.0A

Printing Examples

Model	TX110
128x64 OLED	Y
Date & time (built in clock)	Y
Direct mode	Y
Weighing mode	Y
Statistical mode	Y
Sum mode	Y
Mean mode	Y
Formulation mode	Y
Sample name & lD input	Y
Authority management	Y
Periodic printing	Y

DOCUMENTS

User Guide

TX110 Balance Printer
