Description

With the Sprinter XL, EUROIMMUN provides a flexible solution for fully automated processing of immunofluorescence tests for medium- and high-throughput laboratories. The system performs sample identification, dilution, and transfer, as well as all washing and incubation steps.

Sprinter XL can also be configured as a combination system for additional ELISA processing, enabling integrated automation of multiple assay workflows on a single platform.

Flexible automation for ELISA and immunofluorescence tests on one device
Reliable traceability with integrated barcode reader and optional slide matrix code identification
Efficient carryover-free pipetting using four washable needles, two independent robot arms, and optimized workflow calculation
User-friendly data communication with LIS or EUROLabOffice for simplified routine laboratory workflows
Configurable capacity for up to 160 or 240 samples and up to 30 slides or 6 ELISA plates per run

Specifications

Parameter	Specification
Sample Types	Serum, plasma and CSF
Sample Capacity	Up to 160 or 240 samples
Slide Capacity	Up to 30 slides (combination of slides with 10 and 50 reaction fields possible) or up to 6 ELISA plates
Sample Tubes	Outer diameter 10–16 mm, height up to 100 mm
Pipetting Volume	5 μl – 1000 μl, 1 μl increments
Traceability	Automated registration of samples, optional automated registration of slides
Dimensions (W × D × H)	46.85 × 33.46 × 27.95 in
Weight	330.69 lbs

Key Features

Fully Automated IFT & ELISA Processing

Integrated system enables seamless automation of immunofluorescence and ELISA workflows within a single platform.

High Throughput Flexibility

Supports up to 160 or 240 samples and up to 30 slides or 6 ELISA plates per run for scalable laboratory operations.

Advanced Traceability System

Built-in barcode reader and optional slide matrix code recognition ensure accurate sample tracking and data integrity.

Precision Pipetting Technology

Four washable needles and dual robotic arms deliver carryover-free pipetting with optimized workflow efficiency.

Comprehensive Workflow Automation

Automates sample identification, dilution, transfer, washing, and incubation steps to minimize manual intervention.

LIS Integration & Smart Data Handling

Compatible with LIS and EUROLabOffice for streamlined data communication and laboratory management.

Configurable System Design

Flexible instrument configuration adapts to varying laboratory throughput and application requirements.

Applications

Automated IFT/IFA Processing: Automated processing of indirect immunofluorescence tests in clinical laboratories.

High-Throughput Diagnostics: Supports autoimmune and infectious disease testing in medium- to high-volume environments.

ELISA Workflow Automation: Enables integrated ELISA assay processing and workflow consolidation on one system.

Routine Diagnostic Laboratories: Ideal for laboratories requiring standardized, traceable, and reproducible workflows.

Medium- to High-Volume Sample Processing: Designed for efficient handling of larger daily testing demands.

Workflow Optimization: Reduces manual handling while improving operational consistency and reproducibility.

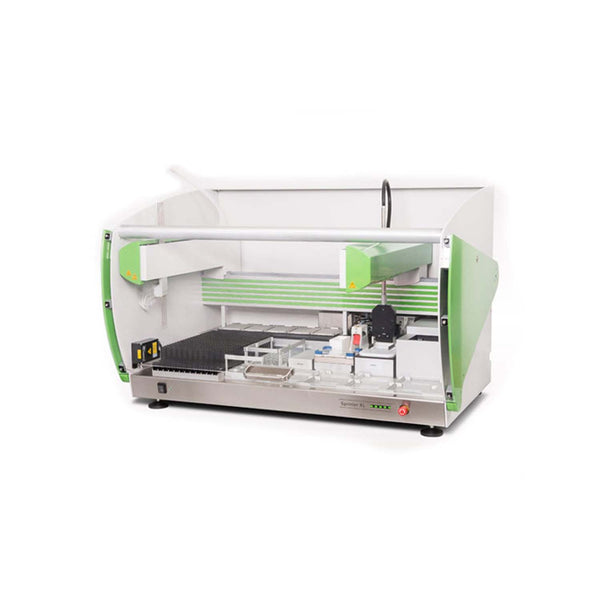

Sprinter XL Fast and Reliable IFT Automation for Medium and High Throughput
