Description

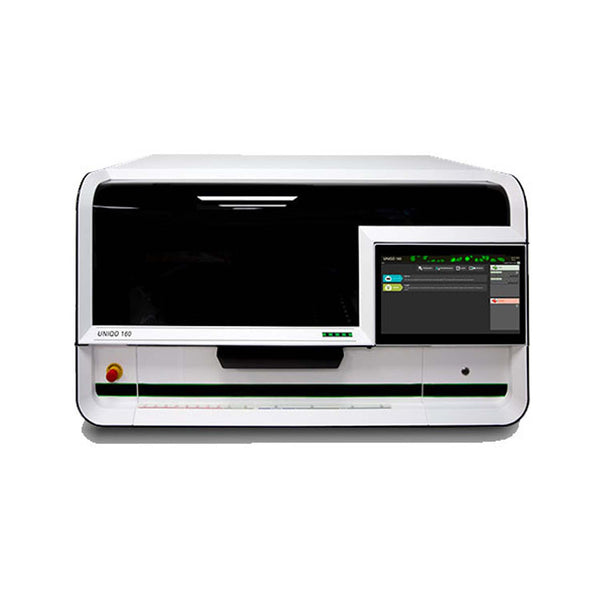

UNIQO 160 provides a complete automation solution from primary sample pipetting to automated IFA image acquisition within a single instrument.

In one run, this benchtop device processes up to 160 primary samples and 18 microscope slides. Samples, reagents, and slides are automatically identified and assigned via barcodes for complete traceability. Slides are protected from drying through automated mounting and cover-slipping after incubation.

This device integrates a high-quality microscope with automatically changing objectives (4x, 10x, 20x) for fluorescence image acquisition across the entire worklist.

Specifications

Parameter	Specification
Operation	Full HD touch-screen monitor, 15 inches
Communication with LIS	Compatible
Electrical Data	100–240 V AC
Dimensions / Weight	1200 mm (47 in) × 900 mm (35 in) × 700 mm (27.5 in) (W × D × H, without accessories) Approx. 150 kg (330 lbs)

Key Features

Integrated Three-Needle System

Efficient pipetting of samples and reagents as well as washing of slides.

High Capacity

Processes 160 IFA samples, 288 dilutions, and 18 slides per run.

Full Traceability

Barcode scanners enable identification of samples, reagents, and slides.

Flexible Loading

Supports up to 20 controls, 4 dilution buffers, and 9 bottles of conjugate and mounting medium.

Automated Imaging

Fluorescence image recording with autofocus and automatically changing objectives (4x, 10x, 20x).

Applications

IFA Processing: Automated processing of indirect immunofluorescence assays from sample pipetting to image acquisition.

High-Throughput Laboratories: Suitable for clinical and research laboratories requiring standardized IFA workflows.

Autoimmune Diagnostics: Detection of ANA, ANCA, and related markers using fluorescence-based methods.

Infectious Disease Serology: Immunofluorescence slide-based antibody testing.

Centralized Laboratories: End-to-end automation with minimal manual intervention and reduced human error.

Traceability & Data Integrity: Barcode-based tracking of samples and reagents.

Digital Microscopy: Automated image capture, analysis, and reporting integration (LIS compatibility).

UNIQO 160 Fully Automated IFA System – from Sample Processing to Image Acquisition
