Description

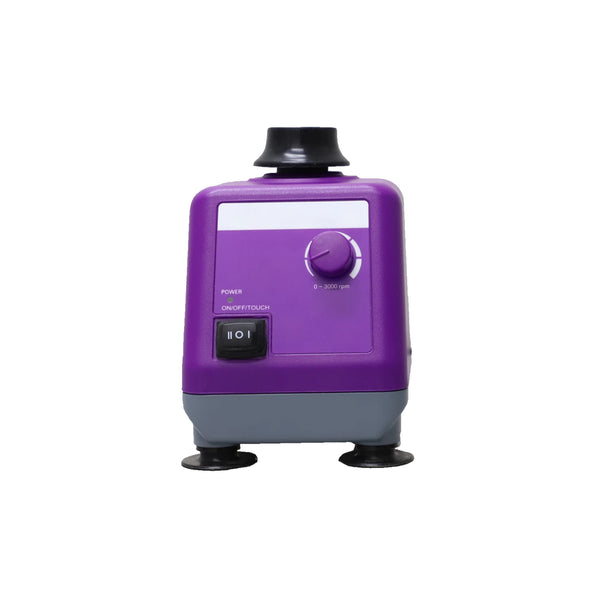

TGyrate Vortex Basic is a small mixer that uses eccentric rotation to make the liquid in test tubes and other containers create a vortex to fully mix the samples. It can be used for mixing samples in centrifuge tubes, test tubes, flasks and other containers. A DC brushless motor is used, which has a long service life and low noise. The motor is directly driven, so the vortex is strong, which can cause the rapid mixing of liquid. The standard swivel is made of highly wear-resistant rubber material. The simple sucking silicone foot pad ensures the stability of the instrument when it runs at high speed. The instrument is easy to operate. With touch and continuous working modes, it can meet different experimental requirements.

Features

Stable: 3000 rpm, stable without displacement.
Low noise: noise less than 60 dB.
Durable: the scroll head is made of special rubber, which is durable and wear-resistant.
Efficient: strong vortex force, 40ml of liquid can mix thoroughly within 5 sec.
Fast acceleration: the maximum speed can be reached within 2 sec.
Touch and continuous working modes.

Technical parameters

Catalog number	OSE-VX-01-AM
Working mode	Touch / continuous mode
Vibration mode	Circumferential
Amplitude	6 mm
Range of rotational speed	0-3000 rpm
Regulation mode of rotational speed	Knob scale speed regulation
Power adapter	DC 12 V，3 A
External dimensions	107 mm×146 mm×166 mm
Net weight	3 kg
Protection level	IP21

Optional accessories

Product name	Catalog number	Product picture
Standard Top	OSE-VX-B001
Universal Top	OSE-VX-B002
Microtiter Plate	OSE-VX-B003
Erlenmeyer Flask	OSE-VX-B004
1.5/2.0 ml Tube Top	OSE-VX-B005
15 ml Tube Top	OSE-VX-B006
Flat Top	OSE-VX-B007
