Description

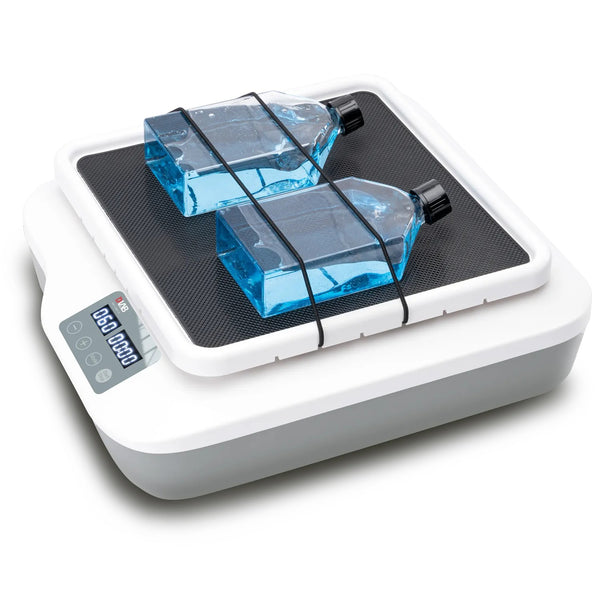

The SK-O180-S Intelligent Decolorizing Shaker (Basic Model) is a compact orbital shaker designed for gentle and uniform mixing in molecular biology, microbiology, and biochemical laboratories. With a 20 mm orbital amplitude and a speed range of 40–200 rpm, the shaker provides stable agitation suitable for gel destaining, sample washing, and various laboratory mixing tasks.

The shaker features a dual LED display that independently shows speed and timer settings, allowing users to easily monitor and adjust operating parameters during experiments. The timer function supports programmable operation from 1 minute to 99 hours 59 minutes and also allows continuous operation mode for long-term shaking processes.

Powered by a reliable brushless DC motor, the SK-O180-S delivers smooth and consistent shaking performance with minimal noise and long service life. The maintenance-free motor design reduces routine servicing requirements while ensuring stable operation throughout extended experimental workflows.

With a maximum load capacity of 2 kg and a spacious working platform of 268 × 268 mm, the shaker accommodates a variety of laboratory containers including culture plates, staining trays, and sample containers. Built-in over-speed detection and protection further enhance operational safety.

Combining a compact footprint, reliable performance, and user-friendly controls, the SK-O180-S Intelligent Decolorizing Shaker provides an efficient solution for routine laboratory shaking applications in research institutes, universities, and diagnostic laboratories.

Specifications

Parameter	Specification
Cat.No.	8072210201
Motion Type	Orbital Shaker
Amplitude	20 mm
Tilt Angle	-
Speed Range	40–200 rpm
Speed Display	LED
Timer Display	LED
Time Settings Range	1 min – 99 h 59 min
Data Connector	-
Max. Load Capacity (with Platform)	2 kg
Motor Type	Brushless DC motor
Motor Rating Input	20 W
Motor Rating Output	16 W
Power	20 W
Voltage	100–240 V
Frequency	50 / 60 Hz
Dimension [W × D × H]	294 × 348 × 123 mm
Work Plate Dimension [W × D]	268 × 268 mm
Weight	3.1 kg
Permissible Ambient Temperature	5–40 ℃
Permissible Ambient Humidity	80% RH
Protection Class	IP21

Features

Double-screen display for time and speed respectively
Compact footprint
Provides smooth and uniform shaking
3.1 kg and speed range 40–200 rpm
Continuous or timer operation mode
Maintenance-free brushless DC motor
Over speed detection and protection

Applications

Gel Destaining: Suitable for removing staining dyes from electrophoresis gels during protein and nucleic acid analysis.
Molecular Biology Experiments: Used for nucleic acid hybridization, washing steps, and protein analysis procedures.
Cell Culture and Sample Mixing: Provides gentle orbital shaking for biological samples, culture plates, and laboratory containers.
Microbiology Research: Supports sample preparation and incubation processes for bacteria and yeast studies.
Laboratory Washing Procedures: Ideal for washing membranes, gels, and other samples during biochemical workflows.
General Laboratory Mixing: Suitable for routine shaking tasks in life science, research, and teaching laboratories.

Compoments

Intelligent Decolorizing Shaker, with fixed plate
