Key Features

User Friendly Operation and Information Rich LCD Display:

The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.

On-Board Data Storage:

The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.

Data can be restored after a sudden power failure.

Auto setting wavelength:

To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.

PC control through application software:

The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)

Large sample compartment:

To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.

Specifications

Specifications	SP-V1000
Optical Systen	Single Beam
Light Source	Tungsten lamp
Spectral Bandwidth	4.0nm
Wavelength Range	325-1000nm
Wavelength Accuracy	±2nm
Wavelength Repeatability	≤1nm
Photometric Range	-0.3-3.0A， 0-200%T
Photometric Accuracy	±0.003A@0.5A, ±0.006A@1.0A, ±0.5%T@100%T
Photometric Repeatability	≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T
Stability	≤0.002A/h @500nm (after preheat 2 hours)
Stray Light	≤0.2%T@360nm
Sample Compartment	4-position,10mm pathlength cuvette
Display	LCD
Output	USB Port&Parallel Port (Printer)
Power	110/220VAC, 50/60Hz,80W
Dimension (L×W×H)	490×360×210mm
Weight	12kg

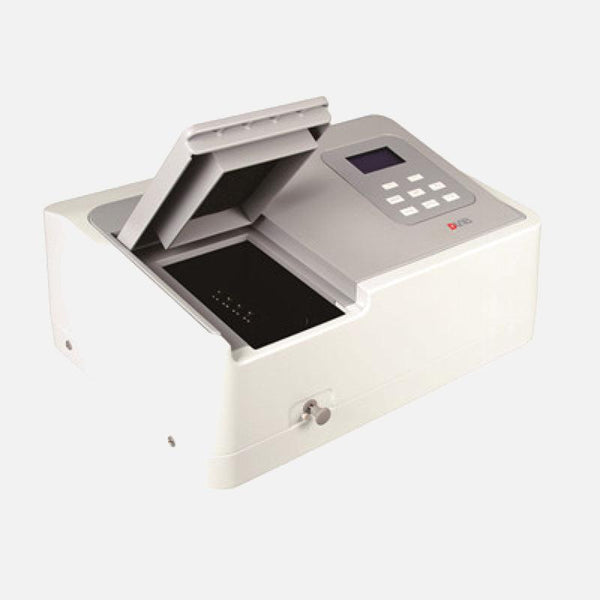

LCD Spectrophotometer-Tungsten Lamp-Dlab SP-V1000
