Description

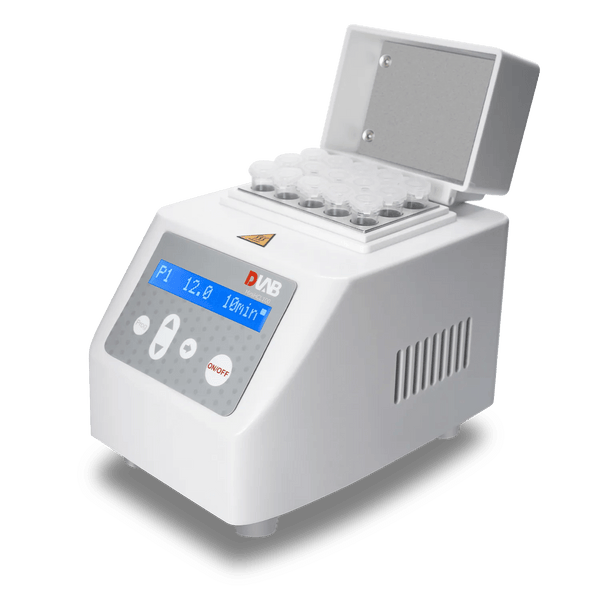

The Mini Dry Bath LCD Digital Mini HCL100 is a compact, lightweight, and versatile laboratory heating and cooling device designed for precise sample processing. Featuring an intuitive LCD display for both temperature and time, it ensures accurate and reproducible results across a variety of applications. The unit supports rapid calibration, overheating protection, and multiple interchangeable blocks for different tube capacities, providing flexibility for diverse laboratory workflows. With a USB interface for data storage and a hot lid to preserve generated heat, the Mini HCL100 delivers safe, stable, and efficient performance for everyday lab experiments.

Specifications

Model Numner	Mini HCL100
Display	LCD
Temperature setting range[℃]	0-100
Temperature range [℃]	Room temperature -23~100
Temperature control accuracy[℃]	±0.5
Temperature display accuracy[℃]	0.1
Minimum time taken for heating(25℃-100℃）	≤20min
Max. Heating Rate	8°C /min
Max. Cooling Rate	3°C /min
Time setting range	0-999min/0-999sec
No. of programs in memory	9(2steps for each）
Rapid calibration	Support
USB interface	Support
Error code reminder	Support
External dimension [mm]	110x162x140
Overall weight [kg]	≤1
Power supply	DC12V,100-240V, 50/60Hz
Power	60W
Operating temperature[℃]	+10-40
Operating humidity [% RH]	≤80

Features

Light in weight.
LCD display of both temperature and time.
Rapid calibration support.
Overheating protection.
Optional blocks with different capacities are available.
Safe and stable.
USB interface to save the data.
Mini HCL100 with hot lid provided to preserve the generated heat.

Cat.No	Block types	Capacity
18900414		30 × 0.2mL
18900415		24 × 0.5mL
18900416		15 × 1.5mL
18900417		6 × 5mL
18900426		4 × 15mL
18900427		2 × 50mL
18900428		15 × 2mL

Kit Components

Item	Quantity
Main Machine	1
Power Line	1
Operation Manual	1
Heating Block	Select according to the package (Default pairing with 18900416 heating block)

FAQ

Q1: What temperature range does the Mini HCL100 support?

A: The Mini HCL100 supports heating from room temperature −23 °C up to 100 °C, with a temperature setting range of 0–100 °C and control accuracy of ±0.5 °C.
Q2: Can the Mini HCL100 perform cooling?

A: Yes. The device features an optional cooling function with a maximum cooling rate of 3 °C/min.
Q3: Are the heating blocks interchangeable?

A: Yes. The Mini HCL100 supports optional interchangeable blocks of various capacities, suitable for different tube sizes and sample types.
Q4: Does the Mini HCL100 include a calibration feature?

A: Yes. It provides rapid calibration support to ensure long-term temperature accuracy and stable performance.
Q5: How fast does the Mini HCL100 heat samples?

A: It can heat from 25 °C to 100 °C in ≤20 minutes, with a maximum heating rate of 8 °C/min.
Q6: Does the Mini HCL100 provide safety features?

A: Yes. The device includes overheating protection and an error code reminder to ensure safe operation.
Q7: Can the Mini HCL100 save temperature data?

A: Yes. It has a USB interface to store and export temperature and time data for documentation and analysis.
Q8: Does it help preserve heat during operation?

A: Yes. The included hot lid helps retain heat within the block, improving temperature uniformity and efficiency for small-volume samples.

Mini Dry Bath – LCD Digital Heating & Cooling, Compatible with 7 Interchangeable Blocks MiniHCL 100
