Description

The IDS-i10 and IDS-iSYS Multi-Discipline Automated System are compact random access instruments for automated processing of chemiluminescence immunoassays (ChLIA) used in autoimmune, allergy, and infection diagnostics, as well as antigen detection. Continuous sample loading, and for the IDS-i10 also connection to a lab track system, allows each patient sample to be processed individually with minimal effort and short reaction times.

Preferred processing of emergency (STAT) samples gives laboratories with different requirements and sample volumes a high degree of flexibility in routine operation.

Random access instruments for batch, continuous, and STAT loading
Minimal calibration effort due to stored master curves
Connection to a laboratory track system possible for the IDS-i10
Autoimmune, allergy, infection parameters, and antigen detection on one instrument
Short reaction times for fast and reliable results in just 25 minutes, depending on the test
High throughput of up to 120 samples per hour
Convenient and reliable operation through barcode recognition of samples and test- and lot-specific information, including stored standard curve

Specifications

Parameter	Specification
Sample Material	Serum, plasma, urine or saliva (assay dependent)
Number of Loading Positions	120 positions for samples, calibrators and controls (6 racks with 20 positions)
Number of Parameters	Up to 15 different immunoassay cartridges
Time to First Result	< 25 minutes (assay dependent)
Throughput	Up to 120 tests/hour (assay dependent)
Sample Tubes	Primary tubes: 4.5 mL, 6 mL, 8.5 mL, 10 mL; secondary tubes: 5 mL; microvials: 500 μL, 2 mL
Luminometer	Wavelengths from 300 to 500 nm
Spectrophotometer	Spectrophotometer with LED technology and 12 wavelength filters
Pipetting Volumes	4 μL – 300 μL (assay dependent)
Traceability	Integrated reader in sample compartment as well as for reagent cartridge barcodes
Online Connection	ASTM interface, bi-directional
Dimensions (W × D × H)	1050 × 750 × 700 mm
Weight	103 kg

Key Features

Random Access Flexibility

Supports batch, continuous, and STAT loading for efficient handling of routine and urgent samples.

Fast Turnaround Time

Delivers results in less than 25 minutes, depending on the assay, for rapid clinical decisions.

High Throughput Performance

Processes up to 120 tests per hour for medium- to high-volume laboratories.

Multi-Discipline Testing

Supports autoimmune, allergy, infection diagnostics, and antigen detection on a single platform.

Minimal Calibration Effort

Stored master calibration curves reduce setup time and improve consistency.

Advanced Traceability

Integrated barcode recognition for samples and reagents ensures workflow security and data integrity.

Continuous Sample Loading

Supports uninterrupted workflow, with optional lab track integration for the IDS-i10.

Wide Sample Compatibility

Supports serum, plasma, urine, and saliva depending on the assay requirements.

Precision Optical System

Equipped with a luminometer and LED-based spectrophotometer for reliable signal detection.

Flexible Pipetting Range

Handles volumes from 4 μL to 300 μL for broad assay versatility.

Applications

Clinical Immunodiagnostics: Detection of autoimmune diseases through chemiluminescence immunoassays.

Allergy Testing: Quantitative and qualitative analysis of allergy-related biomarkers.

Infectious Disease Diagnostics: Identification of infectious agents and immune responses in clinical samples.

Antigen Detection: Rapid screening and monitoring of disease-specific antigens.

Routine Laboratory Automation: Ideal for laboratories requiring continuous, high-throughput immunoassay processing.

STAT Sample Processing: Prioritized testing for emergency samples in hospital and clinical laboratory environments.

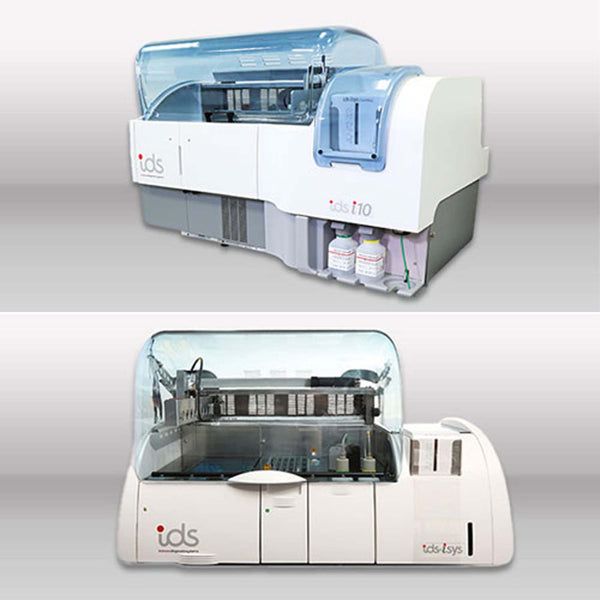

IDS-i10 and IDS-iSYS
