Description

Used for storage of medicines, vaccines, reagents, biological products and other items that require a temperature between 2-8°C in hospitals, pharmacies, pharmaceutical factories, clinics and laboratories etc. (GD for Glass Door and FD for Solid Door)

Specification

Model		HYC-461FD
Technical Data	Cabinet Type	Upright, solid door
	Climate Class	N, 16~32°C
	Cooling Type	Forced air cooling
	Defrost Mode	Auto
	Refrigerant	R600a
	GWP (global warming potential)	20
	Sound Level (dB(A))	39
Performance	Temperature Range (°C)	2~8
Control	Controller	Microprocessor
Control	Display	LED
Electrical Data	Power Supply (V/Hz)	220~240/50/60
	Power (W)	270
	Electrical Current (A)	1.7
Performance Characteristics	Temperature Sensor	NTC6 + Digital1 + Anti-freezing sensor (Optional)
Performance Characteristics	Power Consumption (kWh/24h)	0.8
Dimensions	Capacity (L/Cu.Ft)	461 / 16.3
	Net/Gross Weight (approx) (kg)	115/125
	Net/Gross Weight (approx) (lbs)	254/276
	Interior Dimensions (WDH) (mm)	5005901670
	Interior Dimensions (WDH) (in)	19.723.265.7
	Exterior Dimensions (WDH) (mm)	5958001990
	Exterior Dimensions (WDH) (in)	23.431.578.3
	Packing Dimensions (WDH) (mm)	7039132062
	Packing Dimensions (WDH) (in)	28.336.682.7
	Container Load (20'/40'/40'H)	18/37/37
Alarms	High/Low Temperature	Y
	High Ambient Temperature	Y
	Door Ajar	Y
	Power Failure	Y
	Low Battery	Y
	Sensor Error	Y
	Condenser Heat	Y
	Remote Alarm	Y
	Communication Failure	Y
Accessories	Caster	4
	Foot	2
	Porthole	1 right 25mm
	Shelves/Drawers	6 / Optional
	Printer	Optional
	Chart Recorder	N/A
	USB Interface	Optional
	RS485	Optional
	Electromagnetic Lock	N/A
	Plastic Basket	Optional
	Stainless Steel Cabinet	Optional
	Self Closing	Self closing door hinge with 90° stop
	Door Opening Direction	Reversible Door
Material	Exterior Material	Painted steel
	Interior Material	Polystyrene
	Door Thickness (mm)	50
	Cabinet Thickness (mm)	45
Others	Certification	CE, DIN13277 (optional)

Features

Sensor

Sensor: 7 sensor + anti-freezing sensor (optional)
Eco-friendly Hydrocarbon Refrigerant

Eco-friendly hydrocarbon refrigerant (R600a) and CFC-free polyurethane insulation for reduced global warming potential
High Cooling Performance

Hermetically sealed compressor, forced-air circulation with auto defrost to ensure high cooling performance, temperature uniformity ≤±1.5°C; anti-freezing thermostat is available to protect store items from freezing
Glass Door and Solid Door Options

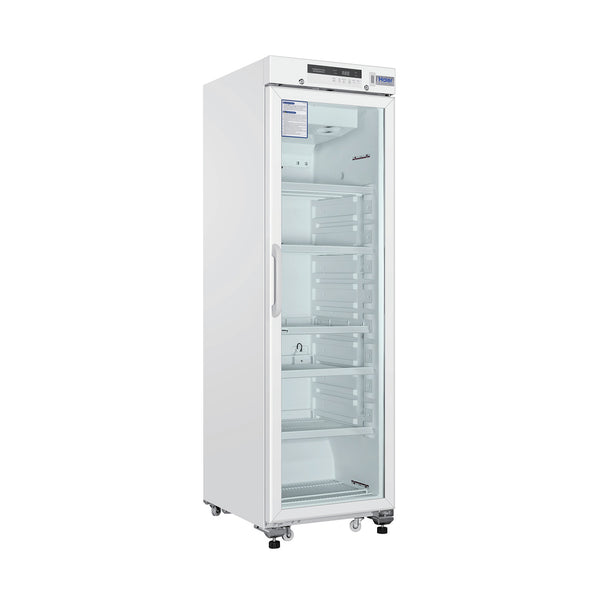

HYC-461GD: Triple-paned tempered glass door with frame heater to reduce condensation even at 32°C, 80% RH ambient; self-closing door hinge with 90° stop; magnetic gaskets to ensure a positive seal
HYC-461FD: Self-closing door hinge with 90° stop; magnetic gaskets to ensure a positive seal
Energy Efficient Interior LED Lighting

Energy efficient interior LED lighting, side-mounted to enlighten full space
Data Export Options

Optional USB module to easily record and export cabinet temperature and alarm data; optional RS485 port for easily external connection; optional printer to easily export cabinet temp data
Probe Access Port

A φ25mm probe access port is standard on side wall to accept user-provided monitoring equipment
Mobility and Fixing

4 swivel casters with 2 leveling feet for easily movement and fixing
Multiple Alarm Functions

Multiple alarm functions for safer monitoring, audible/visual alert with mute function; remote alarm contact is equipped as standard
Microprocessor Controller

Microprocessor controller, digital display with 0.1°C resolution; easy to check the min/max temperature in the past 24 hours
Convenient Security

Convenient security with a top-mounted unique-key lock
Adjustable Shelves

Adjustable plastic-coated wire shelves for improved circulation and flexible storage
