Description

Used for storage of medicines, vaccines, reagents, biological products and other items that require a temperature between 2-8° C in hospitals, pharmacies, pharmaceutical factories, clinics and laboratories etc.

Specification

Model		HYC-341GD
Technical Data	Cabinet Type	Upright, glass door
	Climate Class	N, 16~32°C
	Cooling Type	Forced air cooling
	Defrost Mode	Auto
	Refrigerant	R600a
	GWP (global warming potential)	20
	Sound Level (dB(A))	38
Performance	Temperature Range (°C)	2~8
Performance	Temperature Uniformity (°C)	±2
Control	Controller	Microprocessor
Control	Display	LED
Electrical Data	Power Supply (V/Hz)	220-240/50/60
	Power (W)	220
	Electrical Current (A)	/
Dimensions	Capacity (L/Cu.Ft)	340 / 12
	Net/Gross Weight (approx) (kg)	88/98
	Net/Gross Weight (approx) (lbs)	194/216.05
	Interior Dimensions (WDH) (mm)	5005921279
	Interior Dimensions (WDH) (in)	16.9823.350.35
	Exterior Dimensions (WDH) (mm)	5958001650
	Exterior Dimensions (WDH) (in)	23.4231.4964.96
	Packing Dimensions (WDH) (mm)	7009101730
	Packing Dimensions (WDH) (in)	27.5535.8268.11
	Container Load (20'/40'/40'H)	23/47/53
Alarms	High/Low Temperature	Y
	High Ambient Temperature	Y
	Door Ajar	Y
	Power Failure	Y
	Low Battery	Y
	Sensor Error	Y
	Communication Failure	Y
	Condenser Heat	Y
	Remote Alarm	Y
Accessories	Caster	4
	Foot	2
	Porthole	1
	Shelves/Drawers	5/optional
	Printer	Optional
	Chart Recorder	N/A
	USB Interface	Optional (PDF version)
	RS485	Optional
	Electromagnetic Lock	N/A
	Plastic Basket	Optional
Material	Exterior Material	Painted steel
	Interior Material	Polystyrene
	Door Thickness (mm)	50
	Cabinet Thickness (mm)	45
Others	Certification	CE, DIN13277

Features

Reversible Door Design

Door can be reversible not only in factory but also in user site
Eco-friendly Hydrocarbon Refrigerant

Eco-friendly hydrocarbon refrigerant (R600a) and CFC-free polyurethane insulation for reduced global warming potential
High Cooling Performance

Hermetically sealed compressor, forced-air circulation with auto defrost to ensure superior cooling performance, temperature uniformity ≤±2°C; and anti-freezing thermostat is available to protect store items from freezing, which is DIN13277 compliance.
Glass Door and Solid Door Options

HYC-341GD: Triple-paned tempered glass door with frame heater to reduce condensation even at 32°C, 80% RH ambient; self-closing door hinge; magnetic gaskets to ensure a positive seal
HYC-341FD: Triple-paned tempered solid door with frame heater to reduce condensation even at 32°C, 80% RH ambient; self-closing door hinge; magnetic gaskets to ensure a positive seal
Energy Efficient Interior LED Lighting

Energy efficient interior LED lighting, side-mounted to enlighten full space
Data Export Options

Optional USB module to easily record and export cabinet temperature and alarm data; optional RS485 port for easily external connection; optional printer to easily export cabinet temp data
Probe Access Port

A φ25mm probe access port is standard on side wall to accept user-provided monitoring equipment
Mobility and Fixing

4 swivel casters with 2 leveling feet for easily movement and fixing
Multiple Alarm Functions

Multiple alarm functions for safer monitoring, audible/visual alert with mute function; remote alarm contact is equipped as standard
Microprocessor Controller

Microprocessor controller, digital display with 0.1°C resolution; easy to check the min/max temperature in the past 24 hours; password protect function is available to avoid unauthorized setting.
Convenient Security

Convenient security with a top-mounted unique-key lock
Adjustable Shelves

Adjustable plastic-coated wire shelves for improved circulation and flexible storage

Documents

Product Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

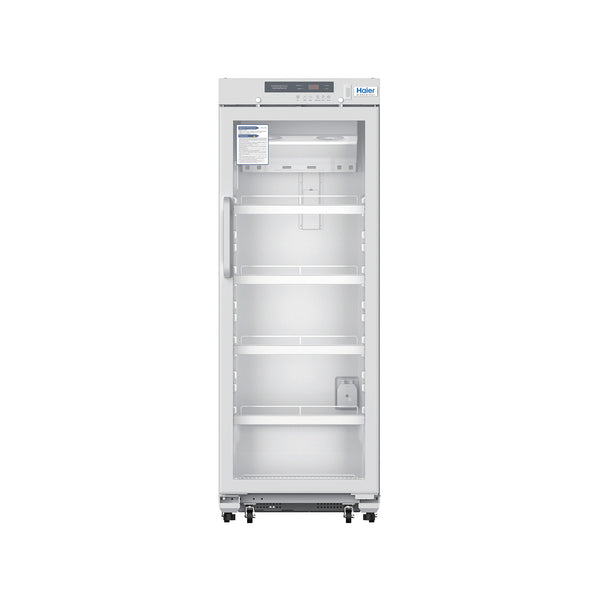

2~8°C 340L (12 cu.ft) Upright Pharmacy Refrigerator with Glass Door - Haier
