Description

The EUROLabWorkstation IFA heralds a new era in IFA automation. With this new development EUROIMMUN enables fully automated and standardized processing with highest capacity and highest efficiency for laboratories with high sample throughput. Up to 750 substrate fields and more than 700 samples can be analyzed at high throughput with just one worklist. The system was developed by EUROIMMUN with a focus on data integrity and minimisation of manual processes. This ensures brilliant fluorescence signals without background for the automatically mounted slides.

The software can be operated comfortably and intuitively via a touch screen and guides the user through the entire process. Complete traceability is guaranteed at all times, since the matrix codes of the slides and the barcodes of samples, reagents and accessories are automatically detected in each step of the process.

Fully automated processing of EUROIMMUN immunofluorescence tests from primary sample to mounted slide
Highest capacity of up to 750 substrate fields and more than 700 samples in a single worklist
Highest efficiency due to 10 washable pipetting needles and complementary accessories, as well as separation of pipetting and transport steps for flexible time management
Flexible workflows owing to freely selectable loading of the 45 tracks with samples, reagents and dilution plates
Brilliant fluorescence signals – each substrate field is washed without the risk of cross contamination using directed liquid flow in a standardised and gentle procedure

Specifications

Parameter	Specification
Sample Types	Plasma, serum, CSF, and DBS
Sample Capacity	> 700 samples
Slide Capacity	Up to 750 reaction fields (combination of slides with 10 and 50 reaction fields possible)
Parameter Capacity per Run	Up to 75
Slide Washing Unit	One each for slides with 10 and 50 reaction fields
Reagent Tray Washing Unit	5 dispensing needles and 11 aspiration needles
Throughput	> 200 tests per hour
Sample Tubes	Outer diameter 10–16 mm, height up to 100 mm
Pipetting Volume	5 μl – 1100 μl, 1 μl increments
Traceability	Automated registration of samples, reagents, dilution plates, slides, reagent trays and cover glass holders
User Interface	Touchscreen PC with EUROLabWorkstation IFA software Microsoft® Windows® 10 LTSB
Online Connection	ASTM via EUROLabOffice
Dimensions (W × D × H)	114.96 × 31.93 × 33.82 in
Weight	992.08 lbs

Key Features

Workflow optimization

45 sample and reagent tracks for freely selectable loading | Slides with 10 and 50 reaction fields | Spatial separation of liquid handling and incubation | Fully automated washing and mounting.

Precise & Efficient Pipetting

10 coated stainless steel needles | Precision pumps | Optimised routes | Liquid level detection | Multishot function for reagents.

Innovative Washing Technology

Controlled liquid flow | Two integrated washing units | Reagent tray cleaning | Automatic mounting medium dispensing.

Convenient Operation

Touch-screen PC | Intuitive GUI | Real-time flow display | Software-supported maintenance.

Process Status Overview

Detailed status on run times, resources and slides; ID-based memory; Exact pending time.

Process Security A-Z

Multi-user rights; Transparent traceability; Gapless allocation of samples and reagents.

Applications

The EUROLabWorkstation IFA is designed for fully automated indirect immunofluorescence (IFA) workflows in high-throughput environments...

Autoimmune Disease Diagnostics: Automated detection of ANA, ANCA, anti-dsDNA.

Infectious Disease Serology: High-throughput viral and bacterial screening.

Clinical Routine Testing: Improved turnaround for hospital diagnostic labs.

Reference Laboratories: Standardized workflows & LIS integration.

Research & Translational: Large-scale immunological studies.

Epidemiological Surveillance: Rapid population-level antibody screening.

Laboratory Automation: End-to-end processing with minimal human error.

High-Throughput Platforms: >200 tests per hour capacity.

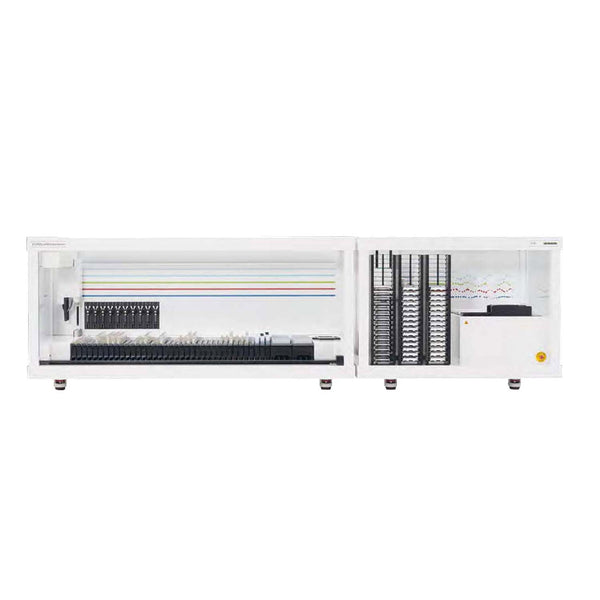

EUROLabWorkstation IFA Full Automation of Indirect Immunofluorescence
