Description

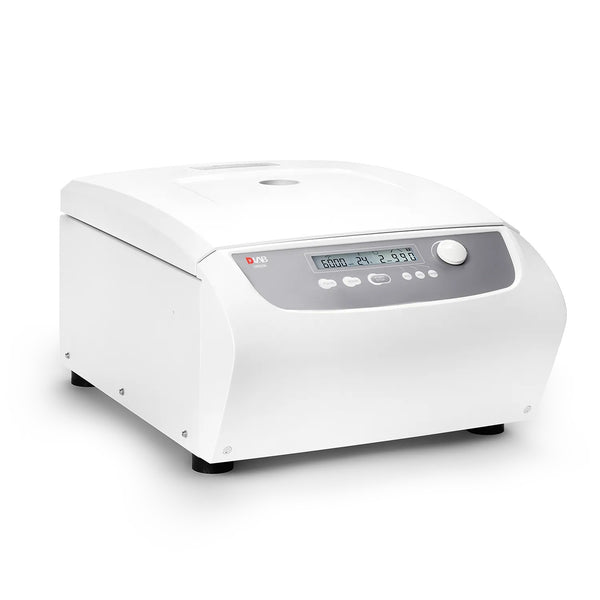

The DM0636 Multi-Purpose Clinical Centrifuge is a versatile laboratory centrifuge designed for routine clinical diagnostics, biological research, and sample preparation applications. With a speed range of 300–6000 rpm and a maximum relative centrifugal force of 4100 × g, the centrifuge delivers reliable performance for the separation of blood, urine, and other biological samples.

This model is supplied with a swing-out rotor kit (19400041) and a 100 mL basket (19400042), providing a maximum rotor capacity of 100 mL × 4. The swing-out rotor design ensures uniform sample separation and is particularly suitable for blood collection tubes and other capped sample tubes commonly used in clinical laboratories.

The centrifuge is powered by a maintenance-free brushless DC motor that provides stable operation, precise speed control, and reduced mechanical wear. The LCD display allows convenient monitoring of speed and run time, while adjustable acceleration and braking profiles (9 acceleration and 10 braking settings) ensure optimal separation conditions for different sample types.

For enhanced safety and reliability, the DM0636 features door imbalance protection, over-speed detection, and over-temperature monitoring. Automatic rotor identification further improves operational safety and simplifies setup. The system also allows up to nine user-defined programs to be stored in memory, enabling quick recall of frequently used centrifugation protocols.

With a maximum capacity of 100 mL × 4, quiet operation (≤65 dB), and compatibility with a wide range of rotors and accessories, the DM0636 Multi-Purpose Clinical Centrifuge provides an efficient and flexible centrifugation solution for clinical laboratories, diagnostic facilities, and research institutions.

Specifications

Parameter	Specification
Cat.No.	9034001122
Speed Range	300–6000 rpm, increment: 10 rpm
Max. RCF	4100 × g
Speed Accuracy	±20 rpm
Rotor Type	-
Rotor Capacity	100 mL × 4
Run Time	30 sec – 99 min / Continuous
Display	LCD
Safety Devices	Door imbalance protection; over-speed & over-temperature detection
Acceleration / Braking Time [Sec]	9 ↑ / 10 ↓ steps
Program	-
Preloaded Program	-
Program Memory	9
Motor	Brushless DC motor
Power	400 W; Single-phase AC 220–240 V, 50/60 Hz, 6.3 A; AC 110–120 V, 50/60 Hz, 10 A
Dimension [W × D × H]	570 × 445 × 295 mm
Weight	36 kg
Noise	≤65 dB

Features

Speed from 300–6000 rpm
Maximum capacity: 100 mL × 4
9 acceleration / 10 brake speed settings to ensure optimal separation
A wide range of rotors optional (fixed angle and swing-out rotors)
Automatic rotor identification
Pulse key for quick spin
9 procedures stored in memory makes the operation much simplified
Maintenance-free brushless DC motor
Suitable for tubes with caps, blood collection or urine tubes
Comprehensive and versatile range of accessories

Applications

Clinical Blood Separation: Suitable for serum and plasma separation from blood collection tubes in clinical laboratories and diagnostic facilities.
Urine and Biological Fluid Analysis: Used for centrifugation of urine samples and other clinical specimens prior to microscopic or biochemical analysis.
Sample Preparation in Clinical Diagnostics: Supports routine centrifugation steps in medical testing workflows including immunoassays and biochemical testing.
Cell and Particle Sedimentation: Efficient separation of cells, cellular debris, and particulate matter from liquid samples.
Research Laboratory Applications: Suitable for general centrifugation tasks in life science laboratories including microbiology, molecular biology, and biochemical research.
Clinical Sample Processing: Compatible with capped tubes, blood collection tubes, and other common laboratory sample containers.

Compoments

Multi-Purpose Clinical Centrifuge (standard package), with swing-out rotor kit19400041 & 100ml basket 19400042

DM0636 Multi-Purpose Clinical Centrifuge with Swing-out Rotor Kit 19400041 & 100ml Basket 19400042
