Description

We offer user-friendly and powerful electrophoresis power supplies for gel electrophoresis, blotting, and other demanding applications. The DEP series features an LCD touchscreen interface for easy programming and supports simultaneous use of four output sockets with three operating modes: constant voltage, constant current, and constant power.

Specification

Parameter	Specification
Cat.No.	4075200005
Display	LCD touchscreen
Output Types	Constant Voltage, Constant Current, Constant Power (continuously adjustable)
Voltage Range	0–300 V
Current Range	0–3000 mA
Power Range	0–400 W
Resolution	Voltage (1 V), Current (1 mA), Power (1 W)
Time Setting Range	1 min – 99 h 59 min
Interface	USB
Output Sockets	4 sets
Voltage	100–240 V, 50 / 60 Hz
Operating Temperature and Humidity	0–40 ℃, ≤95%
Dimensions (L × W × H)	310 × 260 × 115 mm
Weight	2.05 kg

Features

LCD Touchscreen: Simple programming and progress tracking.
High Precision: Adjustable voltage, current, and power with automatic mode switching.
Real-time Data Recording: USB support for data analysis.
Easy Programming: Multi-step programs with tabular entry.
Stable Performance: Multi-CPU control ensures reliability.
Power Failure Recovery: ON/OFF setting based on experimental needs.
Low Current Maintenance: ON/OFF setting as needed.
Safety Protection and Alarm: Short-circuit protection, no-load protection, and a buzzer that can be set according to experimental needs.
Space-saving Design: Anti-slip grooves enable stacking multiple power supplies, saving lab space.
Multiple Outputs: Four sockets for simultaneous use of four electrophoresis units.

Applications

The DEP-300HC power supply covers the broadest range of applications in the market, meeting the power needs of small vertical electrophoresis, high-throughput electrophoresis, and blotting. It supports applications such as SDS-PAGE, Native-PAGE, common protein, and DNA/RNA electrophoresis.

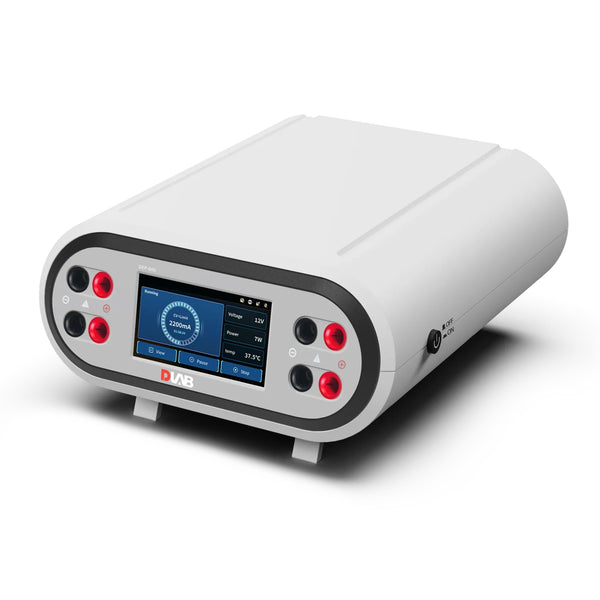

DEP-300HC Electrophoresis Power Supplies
