Models

Cat. No.	Product name	Number of unit	Dimension(W×D×H)
CS160HS	High Speed Stackable CO2 Incubator Shaker	1 Unit（1 Unit）	1000×725×620mm (Base included)
CS160HS-2	High Speed Stackable CO2 Incubator Shaker (2 Units）	1 Set（2 Units）	1000×725×1170mm (Base included)
CS160HS-3	High Speed Stackable CO2 Incubator Shaker (3 Units）	1 Set（3 Units）	1000×725×1720mm (Base included)
CS160HS-D2	High Speed Stackable CO2 Incubator Shaker (The Second Unit）	1 Unit（2nd Unit）	1000×725×550mm
CS160HS-D3	High Speed Stackable CO2 Incubator Shaker (The Third Unit）	1 Unit（3rd Unit）	1000×725×550mm

Key Features

High speed shaking culture for micro volume

▸ The shaking throw is 3mm，max rotation speed of the shaker is 1000rpm. It’s suitable for high throughput deep-well plate culture, it can cultivate thousands of biologocal sample at a time.
Dual-motor and dual-shaking tray design

▸ Dual motor drive, the incubator shaker is equipped with two independent motors, which can run completely independently, and the dual shakeing tray, which can be set to different shaking speeds, thus realizing one incubator to meet the conditions of different speeds of culture or reaction experiments.
7-inch LCD touch panel controller, intuitive control and easy operation

▸ 7-inch touch screen control panel is intuitive and easy to operate, so you can easily control the switch of a parameter and change its value without special training

▸ 30-stage program can be set up to set different temperature, speed, time and other culture parameters, and the program can be automatically and seamlessly switched between; any parameters and historical data curve of the culture process can be viewed at any time
Sliding black window can be supplied for avoid light cultivation (Optional)

▸ For light-sensitive media or organisms, the sliding black window prevents sunlight (UV radiation) from entering the interior of the incubator, while retaining the convenience of viewing the interior of the incubator

▸ Sliding black window is positioned between the glass window and the outer chamber panel, making it convenient and aesthetically pleasing, and perfectly solving the inconvenience of applying tin foil
Double glass doors for excellent insulation and safety

▸ Double glazed interior and exterior safety doors for excellent thermal insulation
UV sterilization system for better sterilization effect

▸ UV sterilization unit for effective sterilization, UV sterilization unit can be opened during rest time to ensure a clean culture environment inside the chamber
All stainless steel rounded corners of the integrated cavity, can be directly cleaned with water, beautiful and easy to clean

▸ Waterproof design of the incubator body, all water or mist sensitive parts including drive motors and electronic components are placed outside the incubator body, so the incubator can be cultivated in high temperature and high humidity environment

▸ Any accidental breakage of flasks during incubation will not cause damage to the incubator, the bottom of the chamber can be cleaned directly with water, or the chamber can be thoroughly cleaned with cleaners and sterilizers to ensure a sterile environment inside the chamber
Heatless waterproof fan ensures uniformity of temperature

▸ Compared with traditional fans, the heatless waterproof fan can make the temperature in the chamber more uniform and stable, while effectively reducing the background heat, which can effectively save energy consumption
Aluminum tray for easy placement of culture containers

▸ 8mm thick aluminum tray is lighter and sturdier, beautiful and easy to clean
Flexible placement, stackable, effective in saving lab space

▸ Can be used as a single layer on the floor or on the table, or as a double or triple stack, and the top pallet can be pulled out to a height of only 1.3 meter from the floor when used as a triple stack, which can be easily operated by laboratory personnel

▸ A system that grows with the task, easily stacking up to three tiers without adding more floor space when the incubation capacity is no longer sufficient, and without further installation. Each incubator shaker in the stack operates independently, providing different environmental conditions for incubation
Multi-safety design for user and sample safety

▸ Optimized PID parameter settings that do not cause temperature overshoot during temperature rise and fall

▸ Fully optimized oscillation system and balancing system to ensure that no other unwanted vibrations occur during high speed oscillation

▸ After an accidental power failure, the shaker will remember the user's settings and automatically start up according to the original settings when the power comes back on, and will automatically prompt the user of the accidental situation that occurred.

▸ If the user opens the door during operation, the shaker oscillating tray will automatically stop rotating flexibly until it stops oscillating completely, and when the door is closed, the shaker oscillating tray will automatically start flexibly until it reaches the preset oscillating speed, so there will be no unsafe events caused by sudden speed increase.

▸ When a parameter deviates far from the set value, the sound and light alarm system is automatically turned on

▸ Data export USB port on the side for easy export of backup data, convenient and safe data storage

Configuration List

CO2 Incubator Shaker	1
Tray with Deep-well Plate Holders	1
Fuse	2
Power Cord	1
Product Manual, Test Report, etc.	1

Specifications

Cat.No.	CS160HS
Quantity	1 unit
Control interface	7.0 inch LED touch operation screen
Rotation speed	2~1000rpm depending on load and stacking
Speed control accuracy	1rpm
Shaking throw	3mm
Shaking motion	Orbital
Temperature control mode	PID control mode
Temperature control range	4~60°C
Temperature display resolution	0.1°C
Temperature distribution	±0.3°C at 37°C
Principle of temp. sensor	Pt-100
Power consumption max.	1300W
Timer	0~999h
Tray size	288×404mm
Number of tray	2
Maximum working height	340mm
Maximum load per tray	15kg
Tray capacity of microtiter plates	32 (deep well plate, low well plate, 24, 48 and 96 well plate)
Timing function	0~999.9hours
Maximum expansion	Stackable up to 3 units
Dimension (W×D×H)	1000×725×620mm (1 unit); 1000×725×1170mm (2 units); 1000×725×1720mm (3 units)
Internal dimension (W×D×H)	720×632×475mm
Volume	160L
Illumination	FI tube,30W
Principle of CO₂ sensor	Infrared (IR)
CO₂ control range	0~20%
CO₂ display resolution	0.1%
CO₂ supply	0.05~0.1MPa is recommended
Sterilization method	UV sterilization
Number of settable programs	5
Number of stages per program	30
Data export interface	USB interface
Historical data storage	800,000 messages
User management	3 levels of user management: Administrator/Tester/Operator
Ambient temperature	5~35°C
Power supply	115/230V±10%, 50/60Hz
Weight	155kg per unit
Material incubation chamber	Stainless steel
Material outer chamber	Painted steel
Optional item	Sliding black window; Remote monitoring

*All products are tested in controlled environments in the manner of RADOBIO. We do not guarantee consistent results when tested under different conditions.

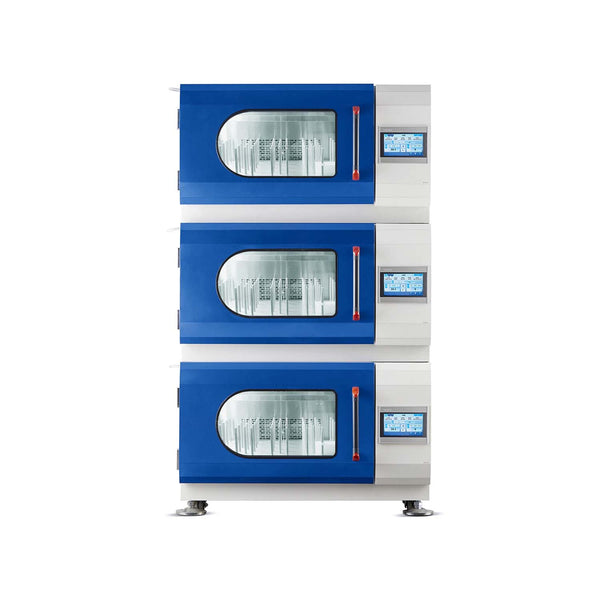

CS160HS High Speed Stackable CO2 Incubator Shaker - Radobio
