CircRNA Standard Series

Product Description:

Geneseed Biotech’s newly optimized circRNA standard series are preparing by   the circPrecise™ platform which has independent intellectual property. The circPrecise™ is based on an innovative upgrade of type I intron self-splicing (PIE) technology, utilizing RNA's own secondary structure to design an optimal circularization site without introducing exon sequences, and enables the precise preparation for No Scar. The preparation and translation efficiency were greatly improved by coupled transcription-circularization. The circRNA standard series can be used as a positive control for experimental exploration in translation expression validation, transfection delivery evaluation, process optimization, etc.

Circ-eGFP, a circRNA encoding enhanced green fluorescent protein gene (eGFP). After translation and expression, green fluorescence can be observed by fluorescence microscopy.

Circ-mCherry, a circRNA encoding the red fluorescent protein gene. After translation expression, red fluorescence can be observed by fluorescence microscopy.

Circ-Fluc, a circRNA encoding Firefly Luciferase gene. After translation and expression, firefly luciferase activity can be detected experimentally.

Product Features:

High integrity

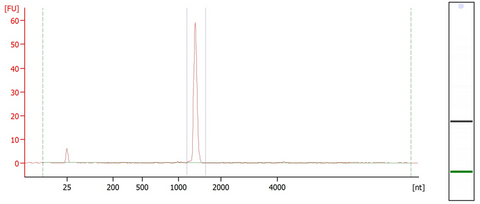

Fig.1: After purification, the integrity (CE) of circRNA >95%.

High purity

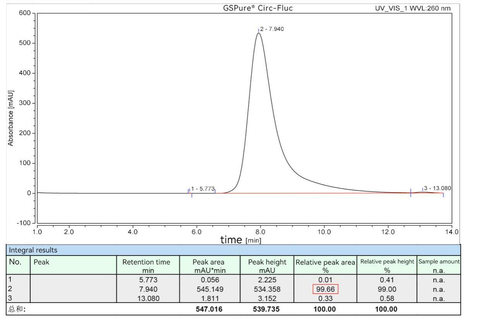

Fig.2: After purification, the purity (HPLC) of circRNA >90%.

High quality

Fig.3: Fluorescence detection of 293T cells transfected with GSPure® Circ-eGFP. Magnification: 100×.

Fig.4: Fluorescence detection of 293T cells transfected with GSPure^® Circ-mCherry. Magnification: 100×.

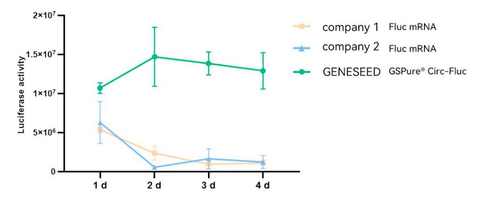

Fig.5: Luciferase assay results after transfection of 293T cells with GSPure® Circ-Fluc.

Kit Contents:

Storage and Handling:

Store the kit at -80 °C. The kit is stable for at least one year from date of receipt.
