Description

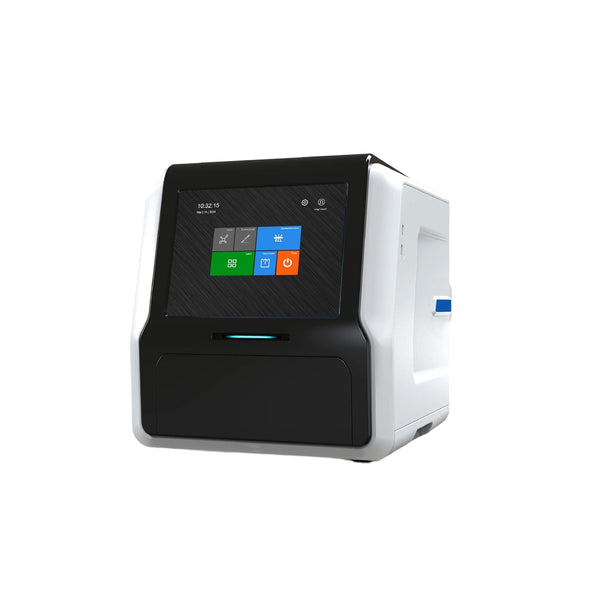

The Chemi Dog 5200T Imaging System is a high-performance chemiluminescence and protein gel imaging system designed for sensitive detection of Western blot signals and routine gel documentation. Engineered for research laboratories, it combines ultra-high sensitivity imaging, intelligent automation, and a compact benchtop design to deliver reliable and reproducible results.

Equipped with an advanced scientific-grade optical system and automatic aperture control, the Chemi Dog 5200T adapts seamlessly to different imaging modes. Its intelligent sample tray recognition system enables fully automated image acquisition with a single touch, minimizing user intervention while maximizing imaging consistency and data quality.

Specifications

Parameter	Specification
Product Model	Chemi Dog 5200T
Applications	Chemiluminescence Imaging, Protein Gel Imaging
Camera System	Scientific research-grade ultra-clear optical system
Imaging Resolution	6.0 Megapixels
Bit Depth	65,536 (16-bit grayscale)
LED Excitation Source	Trans-white, Epi-white
Transilluminator	Automatic control sample platform
Maximum Imaging Area	12 × 15 cm
Sample Trays	Automatic recognition of White Tray and Blot Tray
Touch Screen	12.1-inch multi-touch display
Instrument Dimensions (L × W × H)	40 × 45 × 42 cm

Features

Ultra-High Sensitivity Detection

Optimized for low-abundance protein detection in chemiluminescent Western blot applications.
Scientific-Grade Optical System

High-quality optics ensure sharp images, low background noise, and accurate signal quantification.
Intelligent Automation Workflow

Automatic aperture adjustment and sample tray recognition enable one-click image acquisition.
Versatile Imaging Modes

Supports chemiluminescence imaging as well as visible-light protein gel documentation.
Integrated Touchscreen Control

Built-in 12.1" multi-touch screen allows intuitive operation without an external computer.
Compact Benchtop Design

Space-saving footprint suitable for individual labs, shared core facilities, and teaching laboratories.

Applications

Western blot chemiluminescence imaging
Protein gel documentation (SDS-PAGE, native PAGE)
Blot membrane visualization and cutting guidance
Routine protein expression and validation studies
Academic research and biotechnology laboratories
