Models

Cat. No.	Product name	Number of hosts	Dimension(L×W×H)
C80PE	180°C High Heat Sterilization CO2 Incubator	1 Unit（1Unit）	560×530×825mm(Base included)
C80PE-2	180°C High Heat Sterilization CO2 Incubator(Double Units）	1 Set（2 Units）	560×530×1627mm(Base included)
C80PE-D2	180°C High Heat Sterilization CO2 Incubator(The Second Unit）	1 Unit（2nd Unit）	560×530×792mm

Specifications

Cat.No.	C80PE
Control interface	5-inch LCD touch screen
Temperature control mode	PID control mode
Temperature control range	Ambient +4°C~60°C
Temperature display resolution	0.1°C
Temperature field uniformity	±0.2°C at 37°C
Max. power	500W
Timing function	0~999.9hours
Internal Dimensions	L440×W400×H500mm
Dimension	L560×W530×H825mm
Volume	85L
CO2 measurement principle	Infrared (IR) detection
CO2 control range	0~20%
CO2 display resolution	0.1%
CO2 supply	0.05~0.1MPa is recommended
Relative Humidity	Ambient humidity ~95% at 37°C
HEPA filtration	ISO 5 level, 5 minutes
Sterilization method	180°C High heat sterilization
Temperature recovery time	≤10 min (open door 30sec room temperature 25°C set value 37°C)
CO2 concentration recovery time	≤5 min (open the door 30sec set value 5%)
Historical data storage	250,000 messages
Data export interface	USB interface
User management	3 levels of user management: Administrator/Tester/Operator
Scalability	Up to 2 units can be stacked
Working environment temperature	10~30°C
Power supply	115/230V±10%, 50/60Hz
Weight	78kg

* All products are tested in controlled environments in the manner of Biofargo. We do not guarantee consistent results when tested under different conditions.

Features

6-side direct heat chamber

▸ Compact 85L (3 cu ft) capacity, especially suitable for low-throughput cell culture and confined laboratory space

▸ The 6-side heating method, with efficient, high-performance heating systems distributed on the surface of each chamber, provides a highly uniform temperature distribution throughout the incubator, resulting in a more uniform temperature throughout the incubator and a uniform temperature field of ±0.2°C within the chamber after stabilization

▸ Standard right side door opening, left and right door opening direction according to demand

▸ Polished stainless steel one-piece interior chamber with rounded corners for easy cleaning

▸ Flexible combination of detachable pallets, independent humidity pan can be removed or put in according to demand

▸ Built-in fan in the chamber gently blows air for even distribution within the chamber, ensuring a consistent culture environment

▸ Stainless steel shelves and brackets are durable and can be removed without tools in 1 minute
304 stainless steel water pan for humidification

▸ Easy-to-clean 304 stainless steel water pan holds up to 4L of water, ensuring a high-humidity environment in the culture chamber. It provides maximum protection for cell and tissue culture and avoids the dangerous formation of condensation, even when the humidity pan generates high humidity at normal room temperature, and is still less likely to generate condensation above the chamber. Turbulence-free chamber ventilation ensures a constant and uniform cell culture environment
180°C high heat sterilization

▸ On-demand 180°C high heat sterilization simplifies cleaning and eliminates the need for separate autoclaving and reassembly of components, increasing efficiency

▸ 180°C high heat sterilization system effectively eliminates bacteria, mold, yeast and mycoplasma from the interior cavity surface
ISO Class 5 HEPA filtered airflow system

▸ The chamber's built-in HEPA air filtration system provides uninterrupted filtration of air throughout the chamber

▸ ISO Class 5 air quality within 5 minutes of closing the door

▸ Provides continuous protection by reducing the ability of airborne contaminants to adhere to interior surfaces
Infrared (IR) CO2 sensor for accurate monitoring

▸ Infrared (IR) CO2 sensor for stable monitoring when humidity and temperature are less predictable, effectively avoiding measurement bias problems associated with frequent door opening and closing

▸ Ideal for sensitive applications and remote monitoring, or where frequent opening of the incubator is required

▸ Temperature sensor with overtemperature protection
Active airflow technology

▸ Incubators are equipped with fan-assisted airflow circulation, enabling rapid recovery. Our airflow pattern is specifically designed for uniform distribution of some key environmental conditions (temperature, gas exchange and humidity)

▸ An in-chamber fan gently blows filtered, moist air throughout the chamber, ensuring that all cells have the same environmental conditions and do not lose excessive water regardless of their location
5-inch LCD touch screen

▸ Intuitive controls for easy operation, instant run curves, historical run curves

▸ Convenient installation position above the door for easy control, capacitive touch screen with sensitive touch control experience

▸ Audible and visual alarms, on-screen menu prompts
Historical data can be viewed, monitored and exported

▸ Historical data can be viewed, monitored and exported via USB port, historical data cannot be changed and can be truly and effectively traced back to the original data

Configuration List

CO2 Incubator	1
HEPA Filter	1
Access Port Filter	1
Humidity Pan	1
Shelf	3
Power Cord	1
Product Manual, Test Report, etc.	1

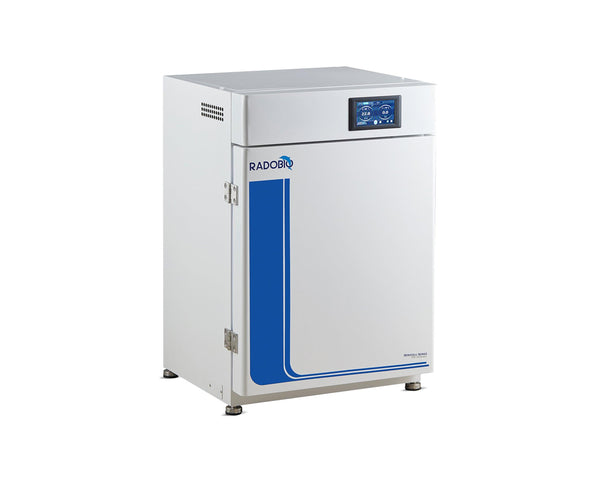

85L (3cu ft) 180°C High Heat Sterilization CO2 Incubator
