Description

Haier water-cooled ULT freezers are designed to meet strict requirements for storage of plasma, biological materials, vaccines, reagents, specimens, and other valuable samples. They are ideal for installations in hospitals, clinics, blood banks and medical research facilities where freezer heat must be removed by cooling water.

Specification

Model			DW-86L828W	DW-86L959W
Technical Data	Cabinet Type		Upright	Upright
	Climate Class		N	N
	Cooling Type		Direct cooling	Direct cooling
	Defrost Mode		Manual	Manual
	Refrigerant		HC	HC
	Noise (dB(A))		50	50
Performance	Cooling Performance (℃)		-86	-86
	Temp Range (℃)		-40~-86	-40~-86
Control	Controller		Microprocessor	Microprocessor
	Display		LCD Touch Screen	LCD Touch Screen
Electrical Data	Power Supply (V/Hz)		110/60	110/60
	Electrical Current (A)		12	12
Construction	Capacity (L/Cu.Ft)		828/29.2	959/33.9
	Net/Gross Weight (approx)	(kg)	380/415	450/485
		(lbs)	837.7/914.9	992.1/1069.2
	Interior Dimension (WDH)	(mm)	8707161310	10167161310
		(in)	34.328.251.6	40.028.251.6
	Exterior Dimension (WDH)	(mm)	11459981980	12969981980
		(in)	45.139.378.0	51.039.978.0
	Packing Dimension (WDH)	(mm)	124010802130	141011602185
		(in)	48.842.583.9	55.545.786.0
Loading Quantities	Container Load (20'/40'/40'H)		5/11/11	5/10/10
Alarms	High/Low Temperature		Y	Y
	Hot Condenser		Y	Y
	Power Failure		Y	Y
	High/Low Vpltage		/	/
	Sensor Error		Y	Y
	Low Battery		Y	Y
	High Ambient Temperature		Y	Y
	Door Ajar		Y	Y
Accessories	Caster		Y	Y
	Foot		Y	Y
	Porthole		Y/2	Y/2
	Shelves/Inner Doors		3/4	3/4
	USB Interface		Y	Y
	Remote Alarm(Dry Contacts)		Y	Y
	5V Power Supply Port		Y	Y
	Temperature Recorder		Optional	Optional
	RS485 Port		Y	Y
	CO₂ Backup System		Optional	Optional
	LN₂ Backup System		Optional	Optional
Certification	CE		Y	Y

Features

Microcomputer control system

Microcomputer control, 10' inch LCD temperature display, display precision 0.1ºC, inside temperature adjustable set point -40-86ºC. Displays operating data such as temperature, voltage and ambient temperature.
Stand-alone sample management system

The software allows users to manage sample inventory within the freezer.
Memory

USB with up to 10 years of the life temperature monitoring data can be downloaded & exported as needed.
Alarm back-up battery

When powered off , two lithium batteries can maintain the refrigerator LCD screen for 22 hours.
Multiple safety locks

The handle incorporates a keylock and facility for padlock. There is the option to have an electromagnetic lock and fingerprint recognition. Multiple of options for users to ensure samples are secure.
Superior thermal insulation performance

The door is 90mm VIP + polyurethane foam with four seals and a single seal on each inner door reduces loss of internal cold air.
Multiple alarm functions

Including high/low temperature,hot condenser,power failure,low battery,high ambient temperature and door ajar.
Networking function

R485 interface is standard, which secures multi-refrigerator networking.

Documents

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

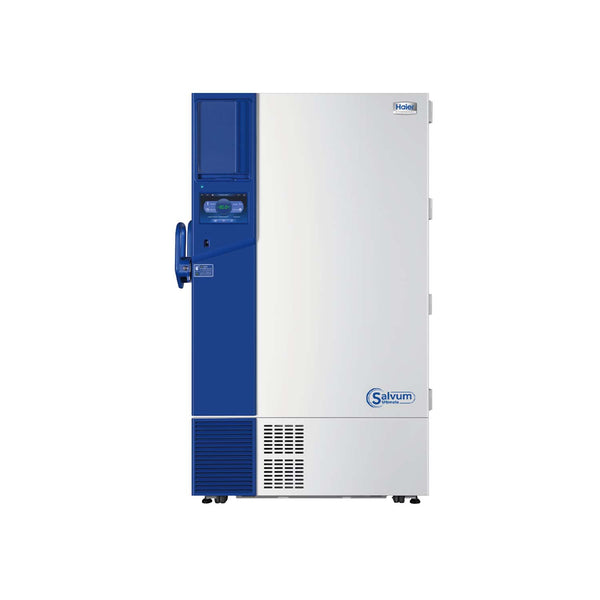

-86°C 959L (33.8 cu.ft) Water-Cooled ULT Freezer - Haier
