DESCRIPTION

Super energy-saving technology and precise temperature control. Designed to provide long-term storage for various biological samples and sensitive items to ensure the integrity and stability of precious materials. With its outstanding energy-saving features, it not only reduces electricity consumption but also contributes to a greener environment.

SPECIFICATION

Model			DW-86L580BPT	DW-86L730BPT	DW-86L830BPT	DW-86L960BPT
Technical Data	Cabinet Type		Upright	Upright	Upright	Upright
	Ambient Temperature (°C)		10-32	10-32	10-32	10-32
	Cooling Type		Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling
	Defrost Mode		Manual	Manual	Manual	Manual
	Refrigerant		HC	HC	HC	HC
	Sound Level (dB(A))		≤42	≤42	≤46	≤40
Performance	Cooling Performance (°C)		-86	-86	-86	-86
Performance	Temperature Range (°C)		-40~-86	-40~-86	-40~-86	-40~-86
Control	Controller		Microprocessor	Microprocessor	Microprocessor	Microprocessor
Control	Display		LCD Touchscreen	LCD Touchscreen	LCD Touchscreen	LCD Touchscreen
Electrical Data	Power Supply (V/Hz)		100-230/50/60	100-230/50/60	100-230/50/60	100-230/50/60
Electrical Data	Max Power (W)		800	900	1050	900
Dimensions	Capacity (L/Cu.Ft)		580/20.5	730/25.8	830/29.3	960/33.9
	Net/Gross Weight	kg	287/326	315/368	336/390	375/426
	Net/Gross Weight	lbs	632.7/718.7	694.5/811.3	740.8/859.8	826.7/939.2
	Interior Dimension (WDH)	mm	6207161310	7667161310	8707161310	10167161310
	Interior Dimension (WDH)	in	24.428.251.6	30.228.251.6	34.328.251.6	40.028.251.6
	Exterior Dimension (WDH)	mm	8959981970	10469981970	11459981970	12969981970
	Exterior Dimension (WDH)	in	35.239.377.6	41.239.377.6	45.139.377.6	51.039.377.6
	Packing Dimension (WDH)	mm	96011502160	111011502160	122011502160	140011502160
	Packing Dimension (WDH)	in	37.845.385	43.745.385	4845.385	55.145.385
	Cabinet Width (without handle and hinge)	mm	800	946	1050	1196
	Container Load (20'/40'/40'H)		12/24/24	10/20/20	8/20/20	8/16/16
Functions	High/Low Temperature Alarm		Y	Y	Y	Y
	Hot Condenser Alarm		Y	Y	Y	Y
	Power Failure Alarm		Y	Y	Y	Y
	High/Low Voltage Alarm		Y	Y	Y	Y
	Sensor Error Alarm		Y	Y	Y	Y
	Low Battery Alarm		Y	Y	Y	Y
	High Ambient Temperature Alarm		Y	Y	Y	Y
	Door Ajar Alarm		Y	Y	Y	Y
	Start-up Delay		Y	Y	Y	Y
Accessories	Caster		Y(4)	Y(4)	Y(4)	Y(4)
	Leveling Feet		Y(2)	Y(2)	Y(2)	Y(2)
	Porthole		2*rear, (15mm)diameter	2*rear, (15mm)diameter	2*rear, (15mm)diameter	2*rear, (15mm)diameter
	Inner Doors		4	4	4	4
	Shelves		3- stainless steel adjustable shelves	3- stainless steel adjustable shelves	3- stainless steel adjustable shelves	3- stainless steel adjustable shelves
	Shelf Dimensions (W*D)(mm)		606*650	752*650	856*650	1002*650
	Max. Load per Shelf (kg)		72	90	108	126
	Freezer Racks Qty (2" boxes)		16	20	24	28
	Capacity (2" boxes)		400	500	600	700
	USB Interface		Y	Y	Y	Y
	Remote Alarm		Y	Y	Y	Y
	5V Power Supply Port		Y	Y	Y	Y
	Temperature Chart Recorder		Optional	Optional	Optional	Optional
	RS232/485 Port		N/A/Standard	N/A/Standard	N/A/Standard	N/A/Standard
	CO₂ Backup System		Optional	Optional	Optional	Optional
	LN₂ Backup System		Optional	Optional	Optional	Optional
Other	Certifications		CE, UL, ENERGY STAR	CE, UL, ENERGY STAR	CE, UL, ENERGY STAR	CE, UL, ENERGY STAR

Features

Optimal Energy Efficient Performance

HC refrigerant, frequency conversion technology and optimized structural design combine to lower operating costs compared to previous generation by up to 50%.
Significantly Enhanced Performance

UltraEco series features lower energy consumption, a longer holdover time, faster temperature recovery time and re-entry time, as well as reduced noise.
Green and Environmental Friendly

Naturally occurring Hydrocarbon (HC) refrigerants and insulation materials with ultra-low global warming potential (GWP) levels exert an extremely minimal impact on the environment.

Documents

ULT Freezer Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

Video

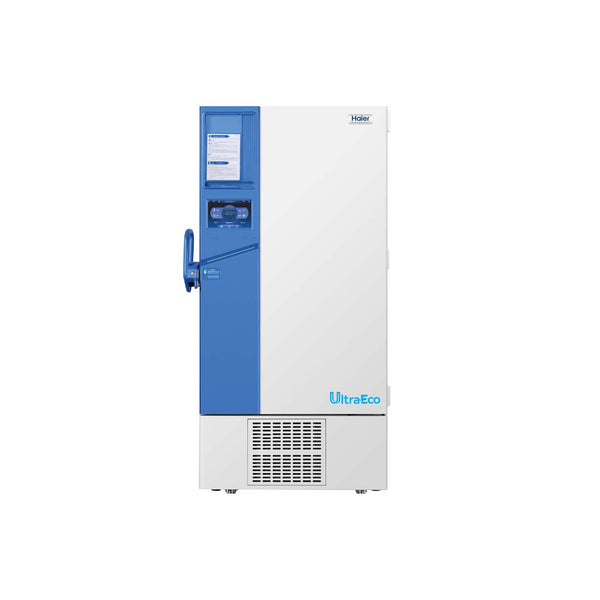

-86°C 830L (29.3 cu.ft) UltraEco ULT Freezer - Haier
