Description

Applicable for products and samples which require strict storage conditions such as viruses, pathogens, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, electronics and special materials.

Suitable for long term storage applications and compliant with typical storage requirements found in hospitals, disease control and prevention centres, scientific research institutions biomedical engineering institutes, agriculture/ fishery companies as well as the electronics and chemical industry.

Specification

Model			DW-86L579BPT	DW-86L729BPT	DW-86L829BPT	DW-86L959BPT
Technical Data	Cabinet Type		Upright	Upright	Upright	Upright
	Climate Class		N	N	N	N
	Cooling Type		Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling
	Defrost Mode		Manual	Manual	Manual	Manual
	Refrigerant		HC	HC	HC	HC
	Sound Level (dB(A))		43.5	43.5	43.5	47
Performance	Cooling Performance (°C)		-86	-86	-86	-86
Performance	Temperature Range (°C)		-40~-86	-40~-86	-40~-86	-40~-86
Control	Controller		Microprocessor	Microprocessor	Microprocessor	Microprocessor
Control	Display		Touch Screen LCD	Touch Screen LCD	Touch Screen LCD	Touch Screen LCD
Electrical Data	Power Supply (V/Hz)		110/60	110/60	110/60	110/60
Electrical Data	Electrical Current (A)		14	14	15	20
Dimensions	Capacity (L/Cu.Ft)		579/20.4	729/25.7	829/29.2	959/33.9
	Net/Gross Weight (approx)	kg	325/355	350/385 kg	380/415 kg	450/485 kg
	Net/Gross Weight (approx)	lbs	716.5/782.6	771.6/848.8	837.7/914.9	992.1/1069.2
	Interior Dimension (WDH)	mm	6207161310	7667161310	8707161310	10167161310
	Interior Dimension (WDH)	in	24.428.251.6	30.228.251.6	34.328.251.6	40.028.251.6
	Exterior Dimension (WDH)	mm	8959981980	10469981980	11459981980	12969981980
	Exterior Dimension (WDH)	in	35.239.378.0	41.239.378.0	45.139.378.0	51.039.378.0
	Packing Dimension (WDH)	mm	97510952130	112010902130	124010802130	141011602185
	Packing Dimension (WDH)	in	38.443.183.9	44.142.983.9	48.842.583.9	55.545.786.0
	Container Load (20'/40'/40'H)		12/24/24	10/22/22	5/11/11	5/10/10
Functions	High/Low Temperature		Y	Y	Y	Y
	Hot Condenser		Y	Y	Y	Y
	Power Failure		Y	Y	Y	Y
	High/Low Voltage		Y	Y	Y	Y
	Sensor Error		Y	Y	Y	Y
	Low Battery		Y	Y	Y	Y
	High Ambient Temperature		Y	Y	Y	Y
	Door Ajar		Y	Y	Y	Y
	Start-up Delay		Y	Y	Y	Y
Accessories	Caster		Y	Y	Y	Y
	Foot		Y	Y	Y	Y
	Porthole		Y/2	Y/2	Y/2	Y/2
	Shelves/Inner Doors		3/4	3/4	3/4	3/4
	USB Interface		Y	Y	Y	Y
	Remote Alarm		Y	Y	Y	Y
	5V Power Supply Port		Y	Y	Y	Y
	Temperature Chart Recorder		Optional	Optional	Optional	Optional
	RS485 Port		Y	Y	Y	Y
	CO₂ / LN₂ Backup		Optional	Optional	Optional	Optional
Certifications	CE		Y	Y	/	Y
	UL		Y	Y	Y	/
	ENERGY STAR		Y	Y	Y	Y

Features

Advanced Hardware System

Smart Full-size Touch Screen

10-inch capacitive touch screen, state-of-art UI design coupled with sample management system to provide the optimal user experience.
HC & Variable Frequency Drive Refrigeration System for Additional Energy Saving

Advanced innovative design delivers excellent energy savings. The energy consumption is down to a single digit.

Optional IoT Software System

Simplified Sample Management Experience

Optional barcode scanner for simple, effortless and precise identification. Input and retrieve your samples with higher precision and efficiency
Wireless Monitoring Connectivity

Check the real-time operating status via mobile phones or palmtop, simple and reliable
Quicker product access, identification and retrieval

Instead of a manual system, the one-gun, one-code and one-key operation plus touch screen synchronization means you can access and retrieve your samples within seconds
24-hour sample protection

Using Haier's app and IoT technology the unit can be monitored and can self-diagnose faults, ensuring you are always aware of your unit's status and able to make real-time and informed choices to protect your samples
Cloud data storage available

Store hundreds of millions of scientific research and sample information in the cloud server

Friendly Design

Safe and secure

Standard equipped with key lock, padlock and electromagnetic lock with optional fingerprint lock, providing multiple safeguards for sample safety
Low noise design, reducing the noise down to 43.5dB

Special noise-reduction design plus super silent compressor technology and energy-saving fan, considerably lowers noise level
Super energy efficient with three environmentally friendly innovations

Ultra-low power consumption, down to less than 10kWh/day, ensuring a world leading energy saving performance
Optimized insulation

Double foaming for both inner and outer doors and five-layer sealing design and optimized super-thick VIP thermal insulation technology, extends temperature holdover time during power failure and increases insulation efficiency by 20%

Applications

Applicable for products and samples which require strict storage conditions such as viruses, pathogens, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, electronics and special materials. Suitable for long term storage applications and compliant with typical storage requirements found in hospitals, disease control and prevention centers, scientific research institutions, biomedical engineering institutes, agriculture/ fishery companies as well as the electronics and chemical industry.

Documents

ULT Freezer Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

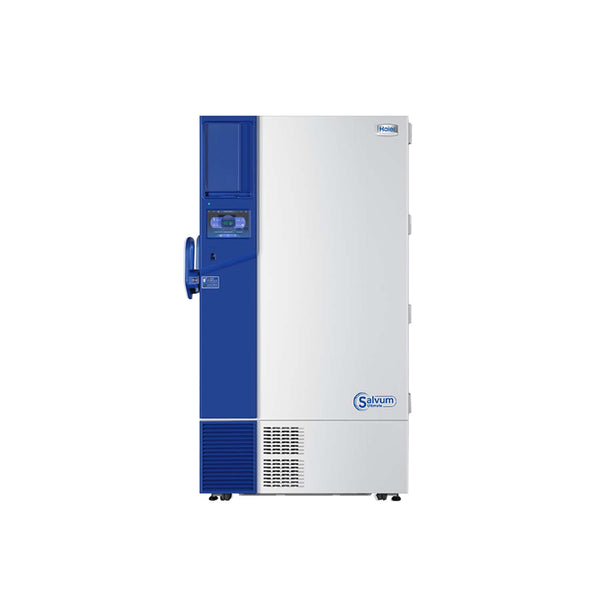

-86℃ 579L (20.4 cu.ft) Ultra Low Energy ULT Freezer - Haier
