Description

Suitable for clinical, medical, scientific research, quarantine and other departments to store items under low temperature conditions. Applicable for universities, hospitals, disease prevention and control centres, blood stations, scientific research institutes, electronics and chemical enterprise laboratories and biomedical engineering research institutes. For storage of biological products and biological samples such as red and white blood cells, viruses, bone and bacteria. Also used for electronic devices and other materials used for cryogenic tests.

Specification

Model			DW-86L51J
Technical Data	Cabinet Type		Upright
	Climate Class		N
	Cooling Type		Direct cooling
	Defrost Mode		Manual
	Refrigerant		HC
	Sound Level (dB(A))		46.8
Performance	Cooling Performance (°C)		-86
	Temperature Range (°C)		-40~-86
Control	Controller		Microprocessor
	Display		LED
Electrical Data	Power Supply (V/Hz)		110/60
	Electrical Current (A)		7.5	3
Dimensions	Capacity (L/Cu.Ft)		51/1.8
	Net/Gross Weight	kg	77/90	73/86
		lbs	169.8/198.4	160.9/189.6
	Interior Dimension(WDH)	mm	330481316
		in	1316.512.4
	Exterior Dimension(WDH)	mm	532640806
		in	20.925.231.7
	Packing Dimension(WDH)	mm	5707351100
		in	22.428.943.3
	Cabinet Width (without handle and hinge)	mm	470
	Container Load(20'/40'/40'H)		60/126/126
Functions	High/Low Temperature		Y
	Hot Condenser		Y
	Power Failure		Y
	High/Low Voltage		Y
	Sensor Error		Y
	Low Battery		Y
	High Ambient Temperature		Y
	Door Ajar		Y
	Start-up delay		Y
Accessories	Caster		Y
	Foot		Y
	Porthole		Y/1
	Shelves/Inner Doors		1/1
	USB Interface		Y
	Remote Alarm		Y
	RS485 Port		NA / Standard
Other	Certification		UL	CE

Features

HC Energy Saving

High-efficiency, energy-saving hydrocarbon compressor technology. Power consumption as low as 4.5kWh/24h
Quiet

Optimized system and noise reduction design, noise output is 46.8dB (220V/50Hz test data)
Personal ULT Freezer

This compact freezer stores up to 3,000 samples in 2 freezer racks (302 inch boxes, 1010 configuration), with a footprint of just 0.35m²
Microprocessor Control System

Microprocessor control, with temperature display precision at 0.1°C. Internal temperature is adjustable from -40°C to -86°C
Ergonomic Design

Ergonomic handle design, easy to open and close
Superior Performance

The temperature uniformity is ±3°C, safe and reliable

Documents

Product Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

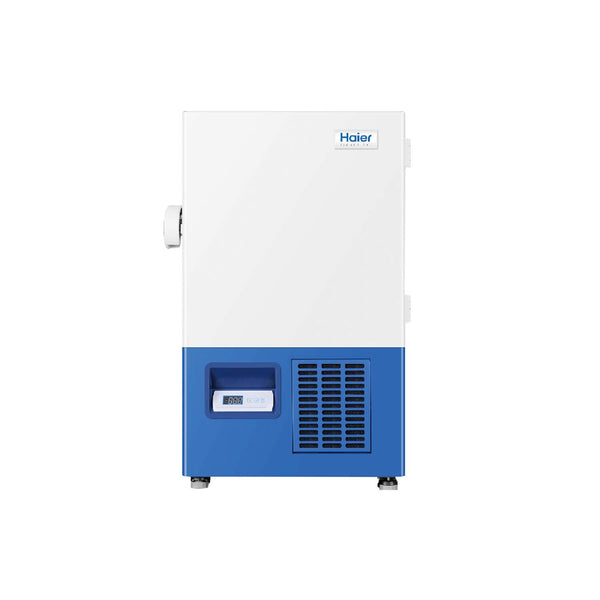

-86°C51L (1.8 cu.ft) Under-counter ULT Freezer - Haier
