Description

Suitable for clinical, medical, scientific research, quarantine and other departments to store items under low temperature conditions. Applicable for universities, hospitals, disease prevention and control centres, blood stations, scientific research institutes, electronics and chemical enterprise laboratories and biomedical engineering research institutes. For storage of biological products and biological samples such as red and white blood cells, viruses, bone and bacteria. Also used for electronic devices and other materials used for cryogenic tests.

Specification

Model			DW-86L100J
Technical Data	Cabinet Type		Upright
	Climate Class		N
	Cooling Type		Direct cooling
	Defrost Mode		Manual
	Refrigerant		HC
	Noise (dB(A))		46.8
Performance	Cooling Performance (℃)		-86
	Temp Range (℃)		-40~-86
Control	Controller		Microprocessor
	Display		LED
Electrical Data	Power Supply (V/Hz)		110/60
	Power (W)		680
	Electrical Current (A)		3	6.5
	Capacity (L/Cu.Ft)		100/3.5
Construction	Net/Gross Weight (approx)	(kg)	108/132
		(lbs)	238/291
	Interior Dimension (WDH)	(mm)	330481630
		(in)	131925
	Exterior Dimension (WDH)	(mm)	770660810
		(in)	302632
	Packing Dimension (WDH)	(mm)	830710970
		(in)	322838.5
Loading Quantities	Container Load (20'/40'/40'H)		44/88/88
Alarms	Remote Alarm		Y
	High/Low Temperature		Y
	Hot Condenser		Y
	Power Failure		Y
	High/Low Voltage		Y
	Sensor Error		Y
	Low Battery		Y
	High Ambient Temperature		Y
	Door Ajar		Y
Accessories	Caster		Y
	Foot		Y
	Porthole		Y/1
	Shelves/Inner Doors		1/2
	USB Interface		Y
	5V Power Supply Port		Y
	RS485 Port		Y
Certification	CE/UL		Y/Y

Features

HC Energy Saving

High-efficiency, energy-saving hydrocarbon compressor technology. Power consumption as low as 4.5kWh/24h
Quiet

Optimized system and noise reduction design, noise output is 46.8dB (220V/50Hz test data)
Personal ULT Freezer

This compact freezer stores up to 3,000 samples in 2 freezer racks (302 inch boxes, 1010 configuration), with a footprint of just 0.35m²
Microprocessor Control System

Microprocessor control, with temperature display precision at 0.1°C. Internal temperature is adjustable from -40°C to -86°C
Ergonomic Design

Ergonomic handle design, easy to open and close
Superior Performance

The temperature uniformity is ±3°C, safe and reliable

Documents

Product Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

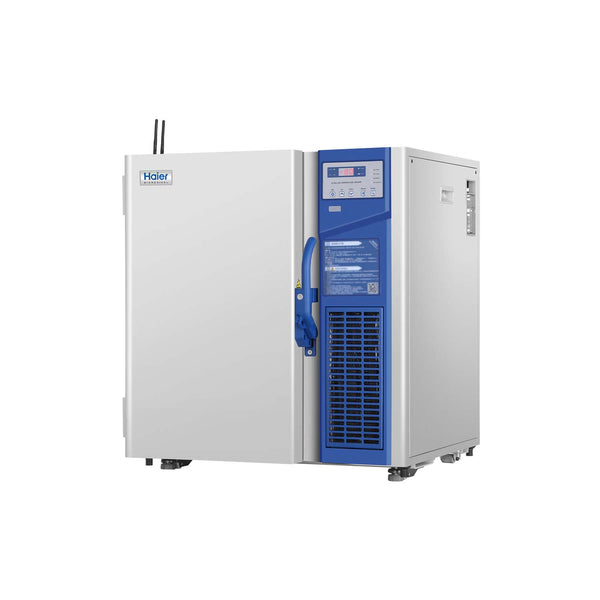

-86°C 100L (3.5 cu.ft) Under-counter ULT Freezer - Haier
