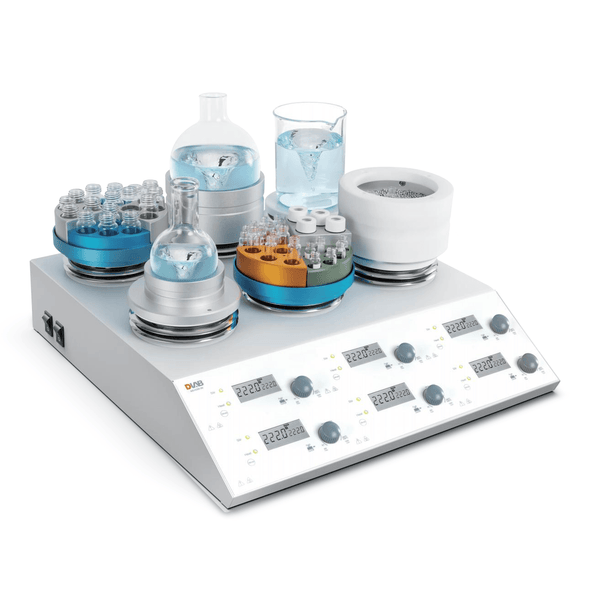

Key Features

4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
Powerful, rapid heating with accurate PID temperature control
Spark-free DC brushless motor with extended life and no maintenance
Compatible with various heating block or reaction vessels for a variety of application scenario
Ultra space-saving with 4/6 channel integrated in one instrument
"HOT" warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Reliable safety mechanism, compliant to IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1 and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.

Applications

The 4/6 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water treatment,pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4 or 6 tests at the same time with stable performance, good reproducibility, high accuracy and easy operation.

The design of 4/6 channel hotplate magnetic stirrers aim to turn your laboratory into a space-saving, safe, highly efficient, tidy and neat benchmark among peers. They are well recognized by higher education, pharmaceutic manufacturer, biotech company, research institute and food manufacturer as an eco-friendly magnetic stirrer for synthesis.

Specifications

Speciﬁcations	MS-H280-S4	MS-M-S4	MS-H280-S6	MS-M-S6
Work plate dimension	Ø134mm	Ø134mm	Ø134mm	Ø134mm
Work plate material	Aluminum with ceramic coating	Aluminum with ceramic coating	Aluminum with ceramic coating	Aluminum with ceramic coating
Motor type	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor
Motor rating output	5WX4	5WX4	5WX6	5WX6
Heating power	600WX4	-	600WX6	-
Total power	605WX4	5WX4	605WX6	5WX6
Voltage, Frequency	100-120V,60Hz; 200-240V,50Hz	100-240V,50/60Hz	100-120V，60Hz; 200-240V,50Hz	100-240V,50/60Hz
Stirring positions	4	4	6	6
Max. stirring quantity (H2O)	3LX4	3LX4	3LX6	3LX6
Max. stirring quantity (H2O) per channel	3L	3L	3L	3L
Max. magnetic bar [length]	40mm	40mm	40mm	40mm
Speed range	200-1500rpm	200-1500rpm	200-1500rpm	200-1500rpm
Speed control accuracy [rpm]	±20	±20	±20	±20
Speed display	LCD	LCD	LCD	LCD
Temperature display	LCD	LCD	LCD	LCD
Heating temperature range	25-280℃	-	25-280℃	-
Overheating protection	420℃	-	420℃	-
Temperature display resolution	0.1℃	-	0.1℃	-
Temperature control accuracy	±1℃(<100℃)， ±1%(>100℃)	-	±1℃(<100℃)， ±1%(>100℃)	-
External temperature sensor	PT1000 (accuracy±0.2℃ )	-	PT1000 (accuracy±0.2℃ )	-
IP protection class	IP21	IP21	IP21	IP21
Dimensions (WxDxH)	701X265X127mm	701X265X127 mm	564X523X127 mm	564X523X127 mm
Weight	8.7Kg	8.7Kg	12.7Kg	12.7Kg
Permissible ambient temperature and humidity	5~40℃, 80% RH	5~40℃, 80% RH	5~40℃, 80% RH	5~40℃, 80% RH
