DESCRIPTION

A mechanical cryogenic freezer is used for the long-term cryopreservation of samples such as cell cultures, tissue samples, bacteria, viruses and non-biological products such as electronics. Applications include cord blood preservation, biobanks, reproductive procedures, blood banks, life science research, biomedical engineering and fisheries. Mechanical cryopreservation is a safe alternative to LN₂ and can reduce or eliminate the reliance on LN₂, reducing safety concerns.

SPECIFICATION

Model			DW-150W209	DW-150W209A
Technical Data	Cabinet Type		Chest	Chest
	Climate Class		N	N
	Cooling Type		Direct cooling	Direct cooling
	Defrost Mode		Manual	Manual
	Refrigerant		HC	HC
	Sound Level (dB(A))		55	55
Performance	Cooling Performance (°C)		-150	-150
	Temperature Range (°C)		-140~-150	-140~-150
Control	Controller		Microprocessor	Microprocessor
	Display		LCD	LCD
Electrical Data	Power Supply (V/Hz)		220-240/50	208-230/60
	Electrical Current (A)		10	12
Dimensions	Capacity (L/Cu.Ft)		209/7.4	209/7.4
	Net/Gross Weight	kg	260/295	260/295
		lbs	573.2/650.4	573.2/650.4
	Interior Dimension (WDH)	mm	667462677	667462677
		in	26.318.226.7	26.318.226.7
	Exterior Dimension (WDH)	mm	16508601010	16508601010
		in	65.033.939.8	65.033.939.8
	Packing Dimension (WDH)	mm	18109601170	18109601170
		in	71.337.846.1	71.337.846.1
	Container Load (20'/40'/40'H)		12/24/24	12/24/24
Functions	High/Low Temperature		Y	Y
	Hot Condenser		Y	Y
	Power Failure		Y	Y
	High/Low Voltage		Y	Y
	Sensor Error		Y	Y
	Low Battery		Y	Y
	High Ambient Temperature		Y	Y
	Door Ajar		Y	Y
	Start-up Delay		Y	Y
Accessories	Caster		Y	Y
	Foot		Y	Y
	Porthole		Y/1	Y/1
	Shelves/Inner Doors		-/2	-/2
	USB Interface		Y	Y
	Remote Alarm		Y	Y
	5V Power Supply Port		Y	Y
	Temperature Chart Recorder		Optional	Optional
	RS232/485 Port		NA/Standard	NA/Standard
	CO₂ Backup System		N/A	N/A
	LN₂ Backup System (Built-in/External)		Optional/Optional	Optional/Optional
	Freezing Rack		433026, Quantity: 12 433028, Quantity: 12	433026, Quantity: 12 433028, Quantity: 12
Other	Certification		CE	UL

Features

Energy Efficient Hydrocarbon Refrigeration

• Includes specialist industrial compressor, hydrocarbon refrigerant, dual-compressors 4-stage cascade refrigeration system, which delivers excellent energy-efficiencies
• Energy-efficient fan design with intelligent start/stop
Environmentally Friendly

• 100% HC refrigerant truly environmentally-friendly refrigeration system with zero global warming potential (GWP)
• LBA polyurethane foam has low GWP and is significantly lower than most HFCs commonly used, offering better environmental protection
Superior Uniformity

The temperature uniformity is ±5°C with the setting temperature of -150°C
Low Noise

Noise-reduction features and noise reduction design lowers to noise to 55 dB (A)
Safe, Secure and Reliable

Multiple alarms, including high and low temperature, power failure, door ajar, hot condenser, low battery, sensor error, and high ambient temperature. The standard ambient temperature ranges from 10°C to 32°C. The pressure state of the system can be automatically adjusted by the pressure controller to prevent the pressure from being too high to effect the freezer operation.

Documents

Product Brochure

▼ DOWNLOAD PDF

Flyer

▼ DOWNLOAD PDF

Certifications

Certificate

▼ ASK FOR CERTIFICATIONS

Video

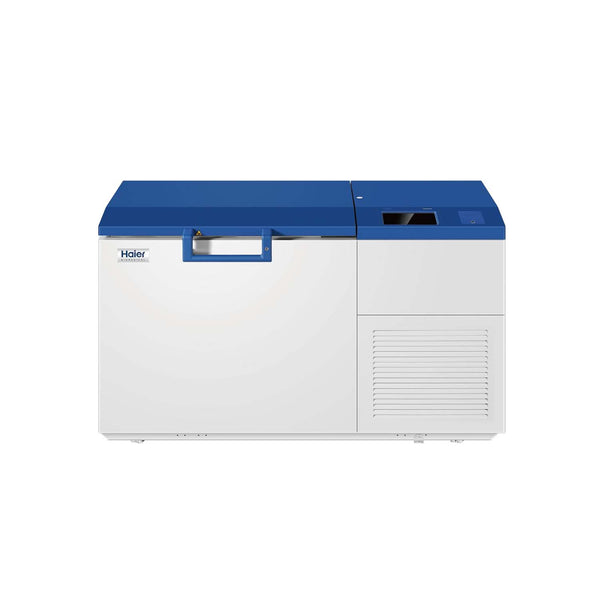

-150°C 209L (7.4 cu.ft) Cryo Freezer - Haier
