Description

This barcoded cryogenic storage box is engineered for secure, organized, and traceable storage of cryogenic samples in ultra-low temperature and liquid nitrogen environments. Manufactured from high-strength polycarbonate, it delivers excellent mechanical durability and chemical resistance, ensuring reliable performance through repeated freeze–thaw cycles.

Featuring a 100-well open-bottom design and a low-profile 1.5-inch overall height, the box accommodates large-diameter and extended-length cryo tubes while remaining fully compatible with automated biobanking and high-throughput sample management systems. Laser-etched barcodes enable accurate sample identification and traceability, supporting digital inventory control and workflow automation.

The removable transparent lid with access openings allows quick visual inspection and seamless robotic access, while maintaining secure tube alignment during storage and handling. An optimized internal geometry enhances liquid nitrogen circulation, enabling rapid cooling and stable temperature recovery across an extreme operating range from −196 °C to 121 °C.

Specifications

Item	Value
Item No.	413066
Product Name	100-Well Open-Bottom Barcoded Cryogenic Box
Layout Specification	10 × 10 (100 Wells)
Compatible Tube Size	1 mL Cryogenic Tubes (including Extended-Length and Large-Diameter Formats)
Box Height	1.5 in (37.1 mm)
Bottom Design	Open Bottom
Side Marking	Alphanumeric Characters and Laser-Etched Barcode
Lid Type	Removable Transparent Lid with Access Openings
Material	Polycarbonate (PC); PC (Cap), PC+ABS (Bottom)
Temperature Range	−196 °C to 121 °C
Automation Compatibility	Compatible with Automated Biobanking and Sample Handling Systems
Appearance Feature	Gray Base with Transparent Lid

Feature

High-Strength Polycarbonate Construction

Manufactured from high-strength polycarbonate, offering excellent resistance to alcohols, organic solvents, and repeated freeze–thaw cycles. Suitable for storage in ultra-low temperature freezers and liquid nitrogen environments.
Wide Temperature Resistance

Maintains structural integrity and performance across an extreme temperature range from −196 °C to 121 °C.
Open-Bottom, High-Density 100-Well Design

Supports high-density sample storage and compatibility with automated and high-throughput biobanking systems.
Secure Snap-Fit Tube Retention

Cryo tubes are securely held in place by a snap-fit design, preventing accidental dislodging during handling, transport, or defrosting.
Enhanced Mechanical Strength for Cryogenic Handling

Robust construction minimizes the risk of cracking or breakage, even when exposed to liquid nitrogen handling conditions.
Automation-Ready Performance

Precisely aligned wells and consistent geometry ensure smooth compatibility with automated storage and retrieval systems, reducing the risk of tube jamming.
Laser-Etched Markings for Traceability

Pre-marked box body with laser-etched alphanumeric codes and barcodes provides clear, durable identification for long-term sample tracking.
Optimized Liquid Nitrogen Flow Design

Strategically designed gaps and channels allow rapid liquid nitrogen inflow and outflow, enabling fast cooling and efficient temperature recovery.
User-Friendly Structural Design

Chamfered square-box corners enable quick and accurate lid positioning, while the independent locking mechanism ensures secure tube fixation during storage.
Customizable Configuration Options

High flexibility in specifications and customization options to meet diverse user requirements and workflow needs.

Application

Long-Term Biobank and Cell Repository Storage

Designed for long-term cryogenic storage of biological specimens in ultra-low temperature freezers and liquid nitrogen systems, meeting the operational and quality requirements of cell banks, genetic resource centers, and large-scale biorepositories.
Automated Biobanking and High-Throughput Sample Management
Compatible with automated storage, retrieval, and robotic handling platforms, enabling efficient, large-volume sample management workflows commonly used in institutional and public biobanks.
Secure Sample Organization, Identification, and Traceability
Supports standardized sample organization with barcode-based identification, ensuring accurate tracking, retrieval, and audit readiness throughout the entire sample lifecycle.
Multi-Specimen Cryogenic Storage
Suitable for the cryogenic storage of DNA, RNA, cell lines, primary cells, tissues, and microbial collections, supporting diverse biobank and research applications.
Clinical and Translational Research Laboratories
Well suited for clinical research, translational medicine, and regulated laboratory environments requiring reliable, traceable, and automation-ready cryogenic storage solutions.
Academic and Industrial Research Settings
Ideal for use in academic research institutions, pharmaceutical companies, biotechnology laboratories, and contract research organizations, supporting both routine and advanced cryogenic workflows.

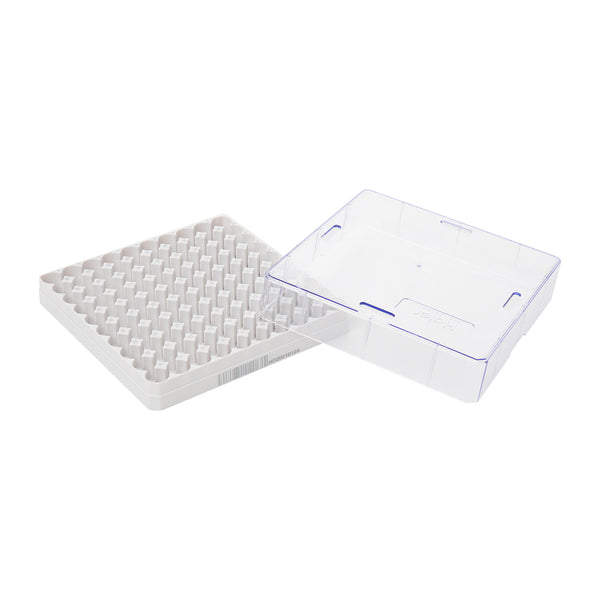

100-Well Open-Bottom Barcoded Cryogenic Box,1.5-Inch Height
